企业实战配置静态理由

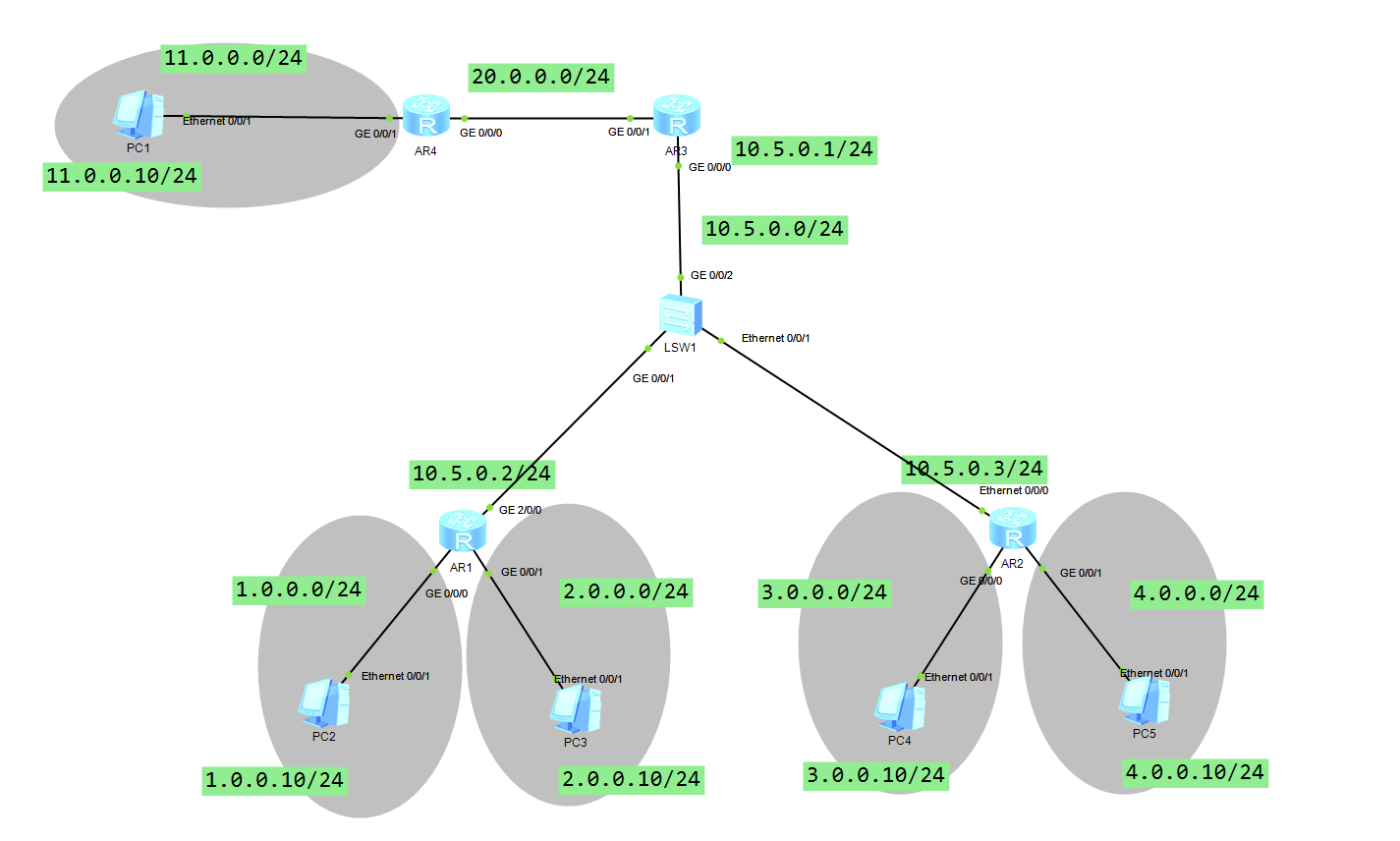

1.环境准备

#每台主机都添加（练习）
<Huawei>sys
[Huawei]user-interface console 0
[Huawei-ui-console0]authentication-mode aaa
[Huawei-ui-console0]aaa
[Huawei-aaa]local-user wong password cipher 123456
[Huawei-aaa]local-user wong privilege level 3
[Huawei-aaa]local-user wong service-type ssh
[Huawei-aaa]quit
[Huawei]ssh user wong authentication-type password
[Huawei]stelnet server enable
[Huawei]user-interface vty 0 4
[Huawei-ui-vty0-4]authentication-mode aaa
[Huawei-ui-vty0-4]protocol inbound ssh

[Huawei-ui-vty0-4]aaa
[Huawei-aaa]local-user zhao password cipher 123456
[Huawei-aaa]local-user zhao privilege level 3
[Huawei-aaa]return
<Huawei>save

AR1

<Huawei>sys
[Huawei]interface GigabitEthernet 0/0/0
[Huawei-GigabitEthernet0/0/0]ip address 1.0.0.1 24
[Huawei-GigabitEthernet0/0/0]quit

[Huawei]interface GigabitEthernet 0/0/1
[Huawei-GigabitEthernet0/0/1]ip address 2.0.0.1 24
[Huawei-GigabitEthernet0/0/1]quit

[Huawei]interface GigabitEthernet 2/0/0
[Huawei-GigabitEthernet2/0/0]ip address 10.5.0.2 24

AR2

<Huawei>sys
[Huawei]interface GigabitEthernet 0/0/0
[Huawei-GigabitEthernet0/0/0]ip address 3.0.0.1 24
[Huawei-GigabitEthernet0/0/0]quit

[Huawei]interface GigabitEthernet 0/0/1
[Huawei-GigabitEthernet0/0/1]ip address 4.0.0.1 24
[Huawei-GigabitEthernet0/0/1]quit

[Huawei]interface GigabitEthernet 2/0/0
[Huawei-GigabitEthernet2/0/0]ip address 10.5.0.3 24

AR3

<Huawei>sys
[Huawei]interface GigabitEthernet 0/0/0
[Huawei-GigabitEthernet0/0/0]ip address 10.5.0.1 24
[Huawei-GigabitEthernet0/0/0]quit

[Huawei]interface GigabitEthernet 0/0/1
[Huawei-GigabitEthernet0/0/1]ip 20.0.0.2 24
[Huawei-GigabitEthernet0/0/1]ip address 20.0.0.2 24

AR4

<Huawei>sys
[Huawei]interface GigabitEthernet 0/0/0
[Huawei-GigabitEthernet0/0/0]quit

[Huawei]interface GigabitEthernet 0/0/1
[Huawei-GigabitEthernet0/0/1]ip address 11.0.0.1 24

2.添加路由表

AR1

[Huawei]ip route-static 3.0.0.0 24 10.5.0.3
[Huawei]ip route-static 4.0.0.0 24 10.5.0.3
[Huawei]ip route-static 0.0.0.0 0 10.5.0.1

AR2

[Huawei]ip route-static 1.0.0.0 24 10.5.0.2
[Huawei]ip route-static 2.0.0.0 24 10.5.0.2
[Huawei]ip route-static 0.0.0.0 0 10.5.0.1

AR3

[Huawei]ip route-static 1.0.0.0 24 10.5.0.2
[Huawei]ip route-static 2.0.0.0 24 10.5.0.2
[Huawei]ip route-static 3.0.0.0 24 10.5.0.3
[Huawei]ip route-static 4.0.0.0 24 10.5.0.3
[Huawei]ip route-static 0.0.0.0 0 20.0.0.1

AR4

[Huawei]ip route-static 1.0.0.0 24 20.0.0.2
[Huawei]ip route-static 2.0.0.0 24 20.0.0.2
[Huawei]ip route-static 3.0.0.0 24 20.0.0.2
[Huawei]ip route-static 4.0.0.0 24 20.0.0.2

3.测试

PC>ping 1.0.0.10
PC>ping 2.0.0.10
PC>ping 3.0.0.10
PC>ping 11.0.0.10

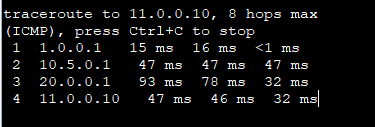

PC>tracert 11.0.0.10
