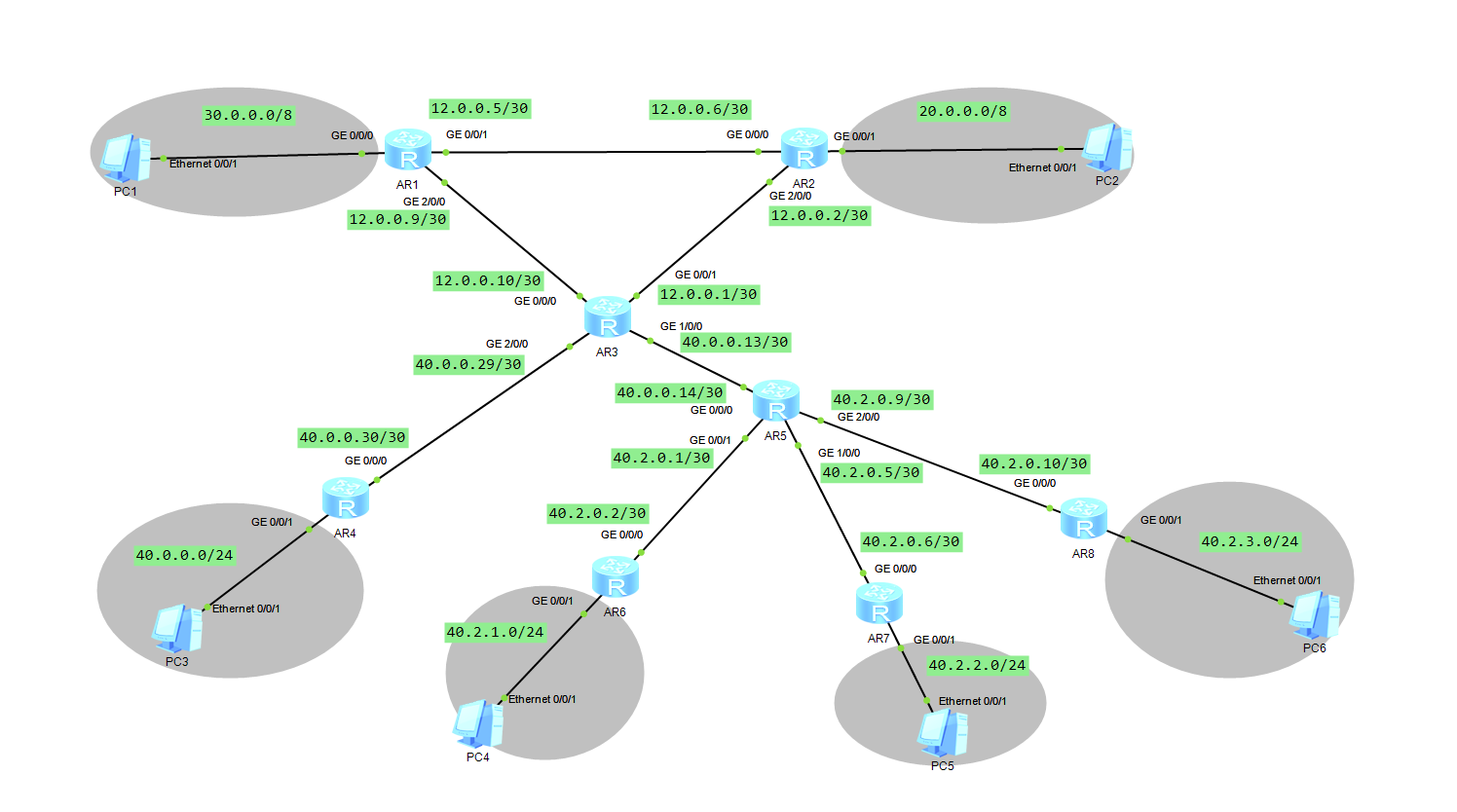

AR1

<Huawei>sys
[Huawei-ui-console0]authentication-mode aaa
[Huawei-aaa]local-user zhao password cipher 123456
[Huawei-aaa]local-user zhao password cip
[Huawei-aaa]local-user zhao privilege level 3
[Huawei]interface GigabitEthernet 0/0/0
[Huawei-GigabitEthernet0/0/0]ip address 30.0.0.1 8
[Huawei-GigabitEthernet0/0/0]quit
[Huawei]interface GigabitEthernet 0/0/1
[Huawei-GigabitEthernet0/0/1]ip address 12.0.0.5 30
[Huawei-GigabitEthernet0/0/1]quit
[Huawei]interface GigabitEthernet 2/0/0
[Huawei-GigabitEthernet2/0/0]ip address 12.0.0.9 30
[Huawei-GigabitEthernet2/0/0]return
<Huawei>save

AR2

<Huawei>sys
[Huawei]user-interface console 0
[Huawei-ui-console0]authentication-mode aaa
[Huawei-aaa]local-user zhao password cipher 123456
[Huawei-aaa]local-user zhao privilege level 3
[Huawei-aaa]quit

[Huawei]interface GigabitEthernet 0/0/0
[Huawei-GigabitEthernet0/0/0]ip address 12.0.0.6 30
[Huawei-GigabitEthernet0/0/0]quit

[Huawei]interface GigabitEthernet 0/0/1
[Huawei-GigabitEthernet0/0/1]ip address 20.0.0.1 8
[Huawei-GigabitEthernet0/0/1]quit

[Huawei]interface GigabitEthernet 2/0/0
[Huawei-GigabitEthernet2/0/0]ip address 12.0.0.2 30
[Huawei-GigabitEthernet2/0/0]return
<Huawei>save

AR3

<Huawei>sys
[Huawei]user-interface console 0
[Huawei-ui-console0]authentication-mode aaa
[Huawei-ui-console0]quit
[Huawei]aaa
[Huawei-aaa]local-user zhao password cipher 123456
[Huawei-aaa]local-user zhao privilege level 3
[Huawei-aaa]quit

[Huawei]interface GigabitEthernet 0/0/0
[Huawei-GigabitEthernet0/0/0]ip address 12.0.0.10 30
[Huawei-GigabitEthernet0/0/0]quit

[Huawei]interface GigabitEthernet 2/0/0
[Huawei-GigabitEthernet2/0/0]ip address 40.0.0.29 30
[Huawei-GigabitEthernet2/0/0]quit

[Huawei]interface GigabitEthernet 0/0/1
[Huawei-GigabitEthernet0/0/1]ip address 12.0.0.1 30
[Huawei-GigabitEthernet0/0/1]quit

[Huawei]interface GigabitEthernet 1/0/0
[Huawei-GigabitEthernet1/0/0]ip address 40.0.0.13 30

[Huawei-GigabitEthernet1/0/0]return
<Huawei>save

AR4

<Huawei>SYS
[Huawei]user-interface console 0
[Huawei-ui-console0]authentication-mode aaa
[Huawei-ui-console0]aaa
[Huawei-aaa]local-user zhao password cipher 123456
[Huawei-aaa]local-user zhao privilege level 3
[Huawei-aaa]quit
[Huawei]interface GigabitEthernet 0/0/0
[Huawei-GigabitEthernet0/0/0]ip address 40.0.0.30 30
[Huawei-GigabitEthernet0/0/0]quit
[Huawei]interface GigabitEthernet 0/0/1
[Huawei-GigabitEthernet0/0/1]ip address 40.0.0.1 24
[Huawei-GigabitEthernet0/0/1]return
<Huawei>save

AR5

<Huawei>sys
[Huawei]user-interface console 0
[Huawei-ui-console0]authentication-mode aaa
[Huawei-ui-console0]aaa
[Huawei-aaa]local-user zhao password cipher 123456
[Huawei-aaa]local-user zhao privilege level 3
[Huawei-aaa]quit

[Huawei]interface GigabitEthernet 0/0/0
[Huawei-GigabitEthernet0/0/0]ip address 40.0.0.14 30
[Huawei-GigabitEthernet0/0/0]quit

[Huawei]interface GigabitEthernet 0/0/1
[Huawei-GigabitEthernet0/0/1]ip address 40.2.0.1 30
[Huawei-GigabitEthernet0/0/1]quit

[Huawei]interface GigabitEthernet 1/0/0
[Huawei-GigabitEthernet1/0/0]ip address 40.2.0.5 30
[Huawei-GigabitEthernet1/0/0]quit

[Huawei]interface GigabitEthernet 2/0/0
[Huawei-GigabitEthernet2/0/0]ip address 40.2.0.9 30

[Huawei-GigabitEthernet2/0/0]return
<Huawei>save

AR6

<Huawei>sys
[Huawei]user-interface console 0
[Huawei-ui-console0]authentication-mode aaa
[Huawei-ui-console0]aaa

[Huawei-aaa]local-user zhao password cipher 123456
[Huawei-aaa]local-user zhao privilege level 3
[Huawei-aaa]quit

[Huawei]interface GigabitEthernet 0/0/0
[Huawei-GigabitEthernet0/0/0]ip address 40.2.0.2 30
[Huawei-GigabitEthernet0/0/0]quit

[Huawei]interface GigabitEthernet 0/0/1
[Huawei-GigabitEthernet0/0/1]ip address 40.2.1.1 24

[Huawei-GigabitEthernet0/0/1]return
<Huawei>save

AR7

<Huawei>sys
[Huawei]user-interface console 0
[Huawei-ui-console0]authentication-mode aaa
[Huawei-aaa]local-user zhao password cipher 123456

[Huawei-aaa]local-user zhao privilege level 3
[Huawei-aaa]quit

[Huawei]interface GigabitEthernet 0/0/0
[Huawei-GigabitEthernet0/0/0]ip address 40.2.0.6 30
[Huawei-GigabitEthernet0/0/0]quit

[Huawei]interface GigabitEthernet 0/0/1
[Huawei-GigabitEthernet0/0/1]ip address 40.2.2.1 24

[Huawei-GigabitEthernet0/0/1]return
<Huawei>save

AR8

<Huawei>sys
[Huawei]user-interface console 0

[Huawei-ui-console0]authentication-mode aaa
[Huawei-aaa]local-user zhao password cipher 123456
[Huawei-aaa]local-user zhao privilege level 3
[Huawei-aaa]quit

[Huawei]interface GigabitEthernet 0/0/0
[Huawei-GigabitEthernet0/0/0]ip address 40.2.0.10 30
[Huawei-GigabitEthernet0/0/0]quit

[Huawei]interface GigabitEthernet 0/0/1
[Huawei-GigabitEthernet0/0/1]ip address 40.2.3.1 24

[Huawei-GigabitEthernet0/0/1]return
<Huawei>save

配置路由表

AR4

[Huawei]ip route-static 0.0.0.0 0 40.0.0.29

AR6

[Huawei]ip route-static 0.0.0.0 0 40.2.0.1

AR7

[Huawei]ip route-static 0.0.0.0 0 40.2.0.5

AR8

[Huawei]ip route-static 0.0.0.0 0 40.2.0.9

AR5

[Huawei]ip route-static 0.0.0.0 0 40.0.0.13
[Huawei]ip route-static 40.2.1.0 24 40.2.0.2
[Huawei]ip route-static 40.2.2.0 24 40.2.0.6
[Huawei]ip route-static 40.2.3.0 24 40.2.0.10

AR3

[Huawei]ip route-static 40.1.0.0 16 40.0.0.30
[Huawei]ip route-static 40.2.0.0 16 40.0.0.14
[Huawei]ip route-static 30.0.0.0 8 12.0.0.9
[Huawei]ip route-static 20.0.0.0 8 12.0.0.2

AR1

[Huawei]ip route-static 20.0.0.0 8 12.0.0.6
[Huawei]ip route-static 40.0.0.0 8 12.0.0.10

AR2

[Huawei]ip route-static 30.0.0.0 8 12.0.0.5
[Huawei]ip route-static 40.0.0.0 8 12.0.0.1

测试

PC>ping 40.2.1.10
PC>ping 30.0.0.10
PC>ping 20.0.0.10
PC>ping 40.2.2.10
PC>ping 40.2.3.10

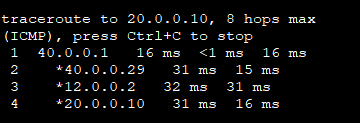

PC>tracert 20.0.0.10
