企业实战配置静态路由

1.项目要求：

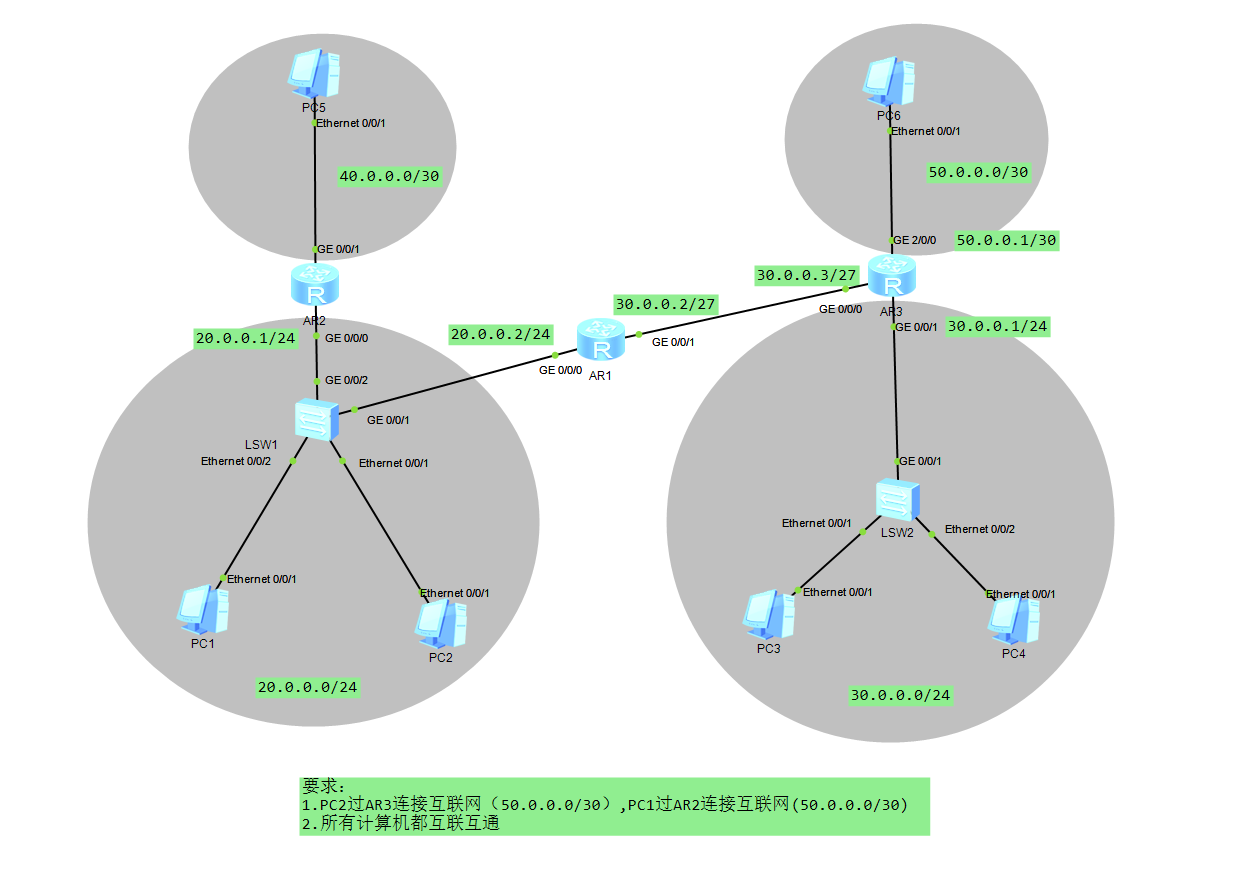

1.PC2过AR3连接互联网（50.0.0.0/30）,PC1过AR2连接互联网(50.0.0.0/30) 2.所有计算机都互联互通

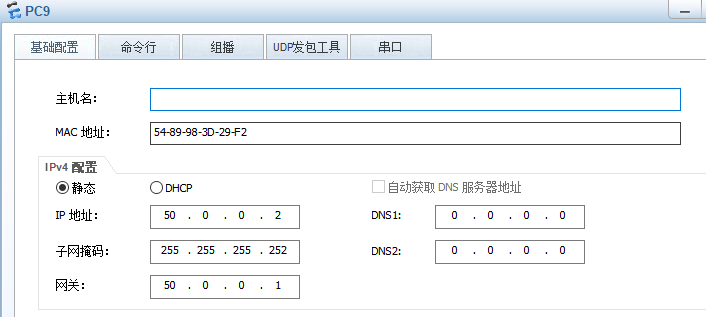

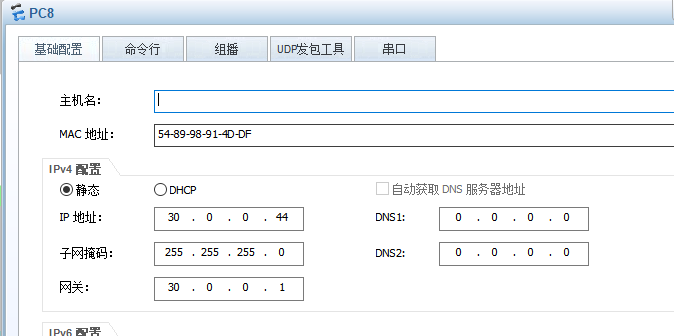

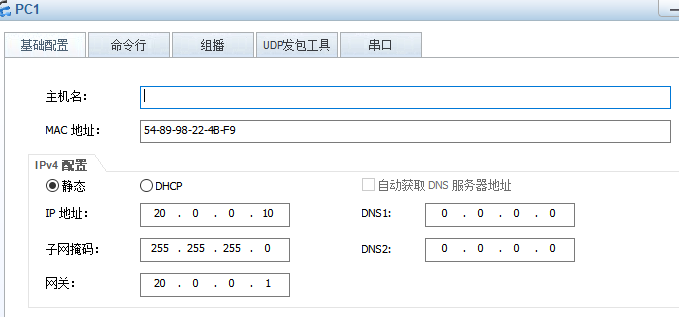

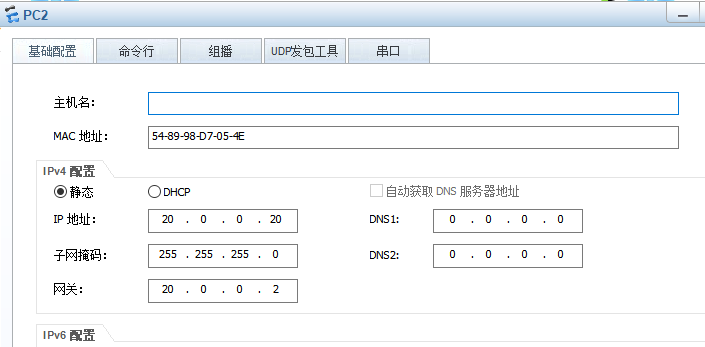

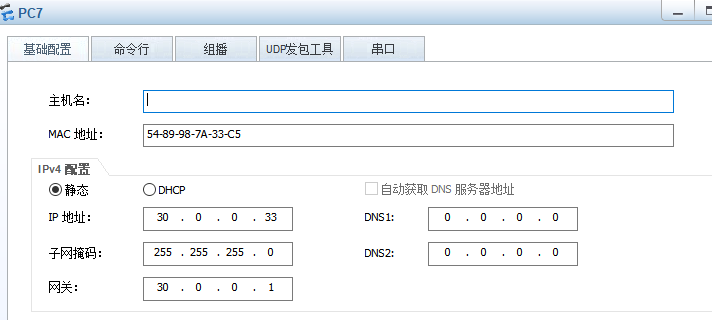

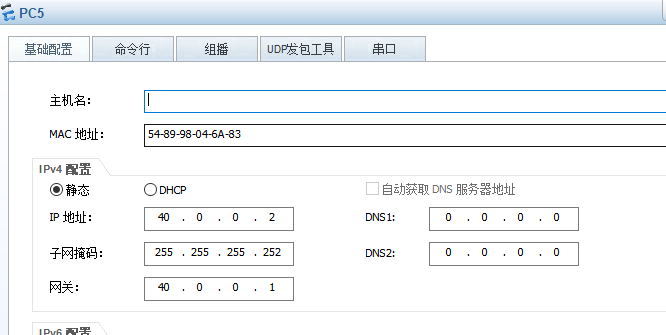

2.环境准备

AR2

<Huawei>sys
[Huawei]user-interface console 0
[Huawei-ui-console0]auth
[Huawei-ui-console0]authentication-mode aaa
[Huawei-ui-console0]aaa
[Huawei-aaa]local-user zhao password cipher 123456
[Huawei-aaa]local-user zhao privilege level 3
[Huawei-aaa]local-user wong password cipher 123456
[Huawei-aaa]local-user wong privilege level 3
[Huawei-aaa]local-user wong service-type ssh
[Huawei-aaa]quit
[Huawei]ssh user wong authentication-type password
[Huawei]stelnet server enable
[Huawei]user-interface vty 0 4
[Huawei-ui-vty0-4]authentication-mode aaa
[Huawei-ui-vty0-4]protocol inbound ssh

[Huawei-ui-vty0-4]quit
[Huawei]interface GigabitEthernet 0/0/1
[Huawei-GigabitEthernet0/0/1]ip address 40.0.0.1 3
[Huawei-GigabitEthernet0/0/1]quit
[Huawei]interface GigabitEthernet 0/0/0
[Huawei-GigabitEthernet0/0/0]ip address 20.0.0.1 24

[Huawei-GigabitEthernet0/0/0]return
<Huawei>save

AR1

<Huawei>sys
[Huawei]user-interface console 0
[Huawei-ui-console0]authentication-mode aaa
[Huawei-ui-console0]aaa
[Huawei-aaa]local-user zhao password cipher 123456
[Huawei-aaa]local-user zhao privilege level 3
[Huawei-aaa]quit

[Huawei]interface GigabitEthernet 0/0/1
[Huawei-GigabitEthernet0/0/1]ip address 30.0.0.2 27
[Huawei-GigabitEthernet0/0/1]quit

[Huawei]interface GigabitEthernet 0/0/0
[Huawei-GigabitEthernet0/0/0]ip address 20.0.0.2 24

[Huawei-GigabitEthernet0/0/0]return
<Huawei>save

AR3

<Huawei>sys

[Huawei]user-interface console 0

[Huawei-ui-console0]authentication-mode aaa
[Huawei-aaa]local-user zhao password cipher 123456
[Huawei-aaa]local-user zhao privilege level 3
[Huawei-aaa]quit

[Huawei]interface GigabitEthernet 2/0/0
[Huawei-GigabitEthernet2/0/0]ip address 50.0.0.1 30
[Huawei-GigabitEthernet2/0/0]quit

[Huawei]interface GigabitEthernet 0/0/1
[Huawei-GigabitEthernet0/0/1]ip address 30.0.0.1 24
[Huawei-GigabitEthernet0/0/1]quit

[Huawei]interface GigabitEthernet 0/0/0
[Huawei-GigabitEthernet0/0/0]ip address 30.0.0.3 27

[Huawei-GigabitEthernet0/0/0]return
<Huawei>save

3.添加路由表

AR1

[Huawei]ip route-static 0.0.0.0 0 30.0.0.3
[Huawei]ip route-static 30.0.0.0 24 30.0.0.3

AR2

[Huawei]ip route-static 30.0.0.0 24 20.0.0.2

AR3

[Huawei]ip route-static 20.0.0.0/24 30.0.0.2

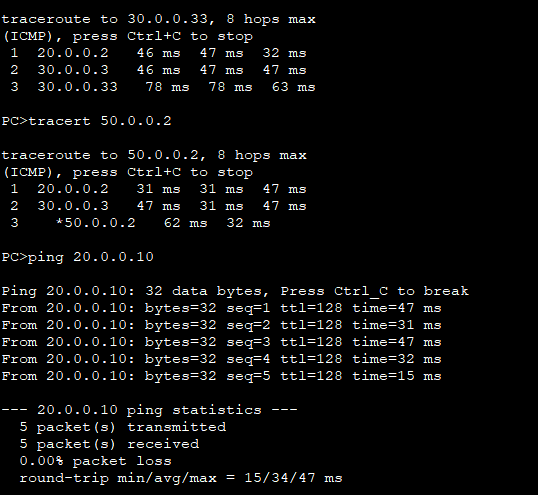

4.测试
