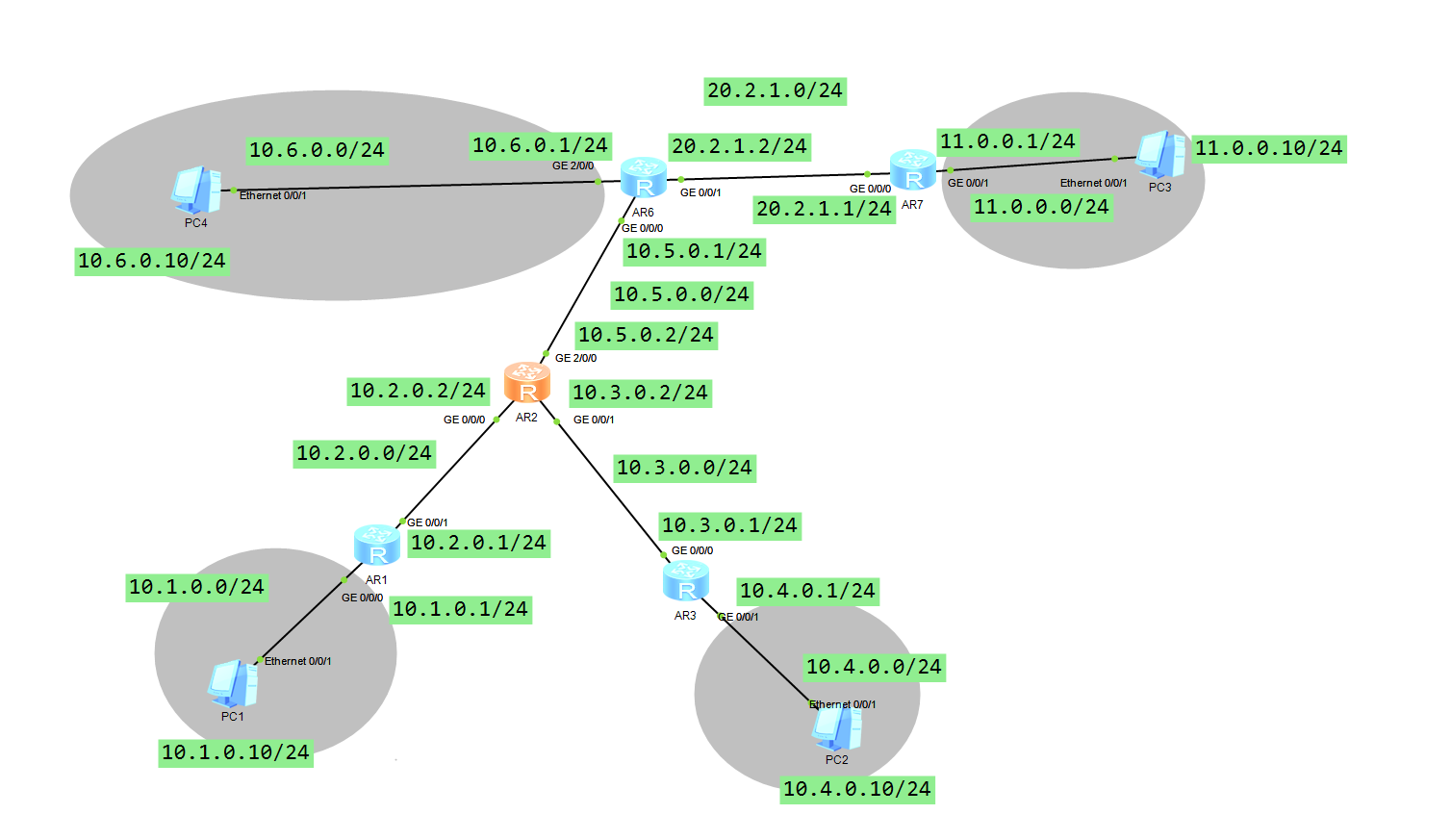

1.前期搭建

#每一个路由都操作（练习）

<Huawei>sys
[Huawei]user-interface console 0
[Huawei-ui-console0]authentication-mode aaa
[Huawei-ui-console0]aaa

[Huawei-aaa]local-user wong password cipher 123456
[Huawei-aaa]local-user wong privilege level 3
[Huawei-aaa]local-user wong service-type ssh

[Huawei-aaa]local-user zhao password cipher 123456
[Huawei-aaa]local-user zhao privilege level 3

[Huawei-aaa]local-user admin password cipher 123456     #没什么用
[Huawei-aaa]local-user admin password cipher Auth882233 #没什么用

[Huawei]ssh user wong authentication-type password
[Huawei]stelnet server enable
[Huawei]user-interface vty 0 4
[Huawei-ui-vty0-4]authentication-mode aaa
[Huawei-ui-vty0-4]protocol inbound ssh

[Huawei-aaa]return
<Huawei>save

AR1

[Huawei]interface GigabitEthernet 0/0/0
[Huawei-GigabitEthernet0/0/0]ip address 10.1.0.1 24
[Huawei-GigabitEthernet0/0/0]quit

[Huawei]interface GigabitEthernet 0/0/1
[Huawei-GigabitEthernet0/0/1]ip address 10.2.0.1 24
[Huawei-GigabitEthernet0/0/1]display ip interface brief

[Huawei-GigabitEthernet0/0/1]return
<Huawei>save

AR3

[Huawei]interface GigabitEthernet 0/0/0
[Huawei-GigabitEthernet0/0/0]ip address 10.3.0.1 24
[Huawei-GigabitEthernet0/0/0]quit

[Huawei]interface GigabitEthernet 0/0/1
[Huawei-GigabitEthernet0/0/1]ip address 10.4.0.1 24
[Huawei-GigabitEthernet0/0/1]display ip interface brief

[Huawei-GigabitEthernet0/0/1]]return
<Huawei>save

AR2

[Huawei]interface GigabitEthernet 0/0/0
[Huawei-GigabitEthernet0/0/0]ip address 10.2.0.2 24
[Huawei-GigabitEthernet0/0/0]quit

[Huawei]interface GigabitEthernet 0/0/1
[Huawei-GigabitEthernet0/0/1]ip address 10.3.0.2 24
[Huawei-GigabitEthernet0/0/1]quit

[Huawei]interface GigabitEthernet 2/0/0
[Huawei-GigabitEthernet2/0/0]ip address 10.5.0.2 24
[Huawei-GigabitEthernet2/0/0]display ip interface brief

[Huawei-GigabitEthernet2/0/0]return
<Huawei>save

AR6

[Huawei]interface g
[Huawei]interface GigabitEthernet 0/0/0
[Huawei-GigabitEthernet0/0/0]ip address 10.5.0.1 24
[Huawei-GigabitEthernet0/0/0]quit

[Huawei]interface GigabitEthernet 0/0/1
[Huawei-GigabitEthernet0/0/1]ip address 20.2.1.2 24
[Huawei-GigabitEthernet0/0/1]quit

[Huawei]interface GigabitEthernet 2/0/0
[Huawei-GigabitEthernet2/0/0]ip address 10.6.0.1 24
[Huawei-GigabitEthernet2/0/0]display ip interface brief

[Huawei-GigabitEthernet2/0/0]return
<Huawei>save

AR7

[Huawei]interface GigabitEthernet 0/0/0
[Huawei-GigabitEthernet0/0/0]ip address 20.2.1.1 24
[Huawei-GigabitEthernet0/0/0]quit

[Huawei]interface GigabitEthernet 0/0/1
[Huawei-GigabitEthernet0/0/1]ip address 11.0.0.1 24
[Huawei-GigabitEthernet0/0/1]display ip interface brief

[Huawei-GigabitEthernet0/0/1]return
<Huawei>save

2.配置路由表

AR1

[Huawei]ip route-static 0.0.0.0 0 10.2.0.2

AR3

[Huawei]ip route-static 0.0.0.0 0 10.3.0.2

AR2

[Huawei]ip route-static 0.0.0.0 0 10.5.0.1
[Huawei]ip route-static 10.1.0.0 24 10.2.0.1
[Huawei]ip route-static 10.4.0.0 24 10.3.0.1

AR6

[Huawei]ip route-static 10.0.0.0 8 10.5.0.2
[Huawei]ip route-static 0.0.0.0 0 20.2.1.1

AR7

[Huawei]ip route-static 10.0.0.0 8 20.2.1.2

3.测试

PC1
PC>ping 10.4.0.10
PC>ping 10.6.0.10
PC>ping 11.0.0.10

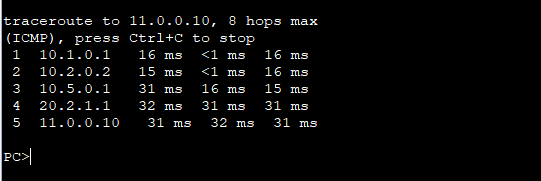

PC>tracert 11.0.0.10
