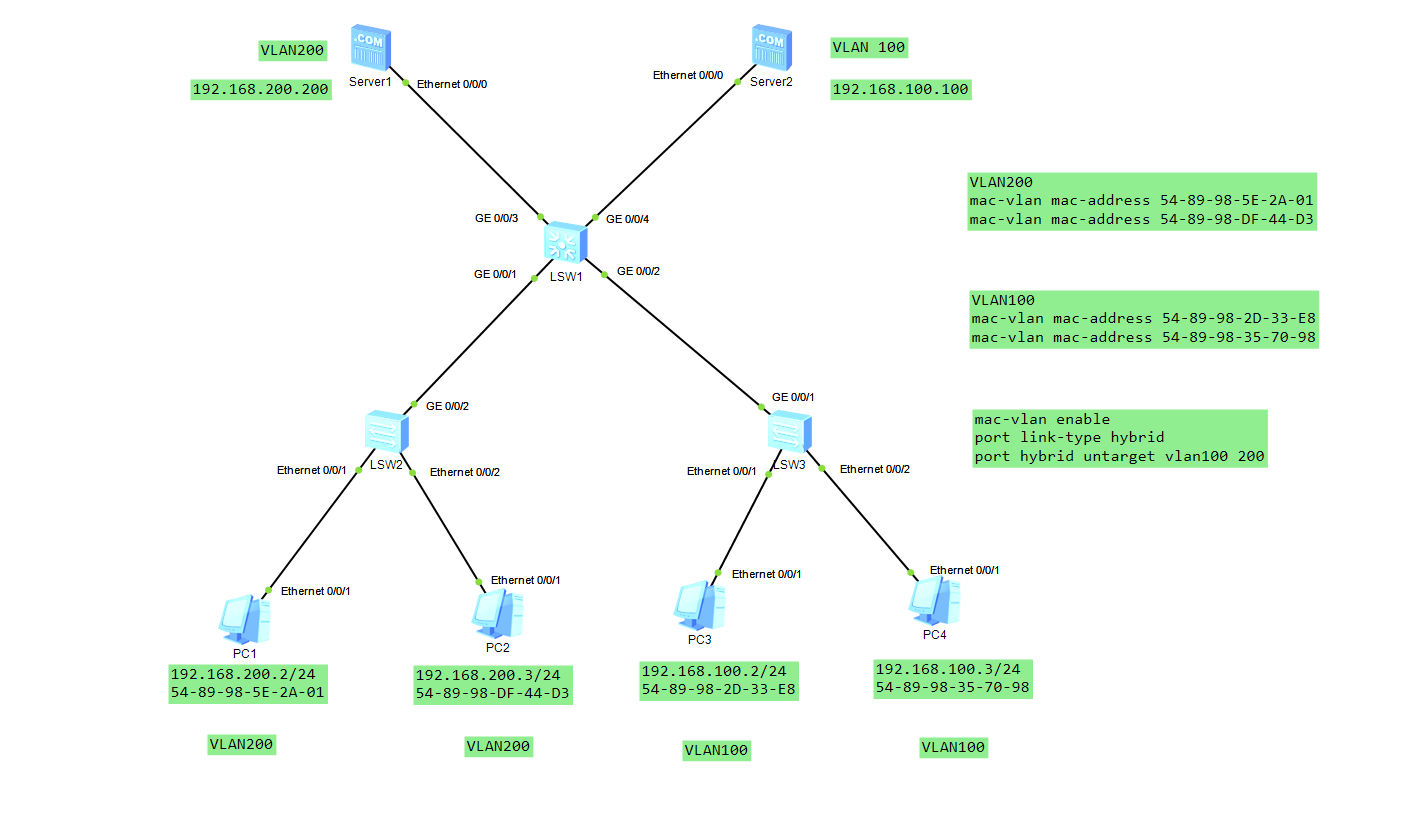

基于MAC地址配置VLAN
仅绑定接口的话，有时候会因为误接，导致VLAN用不上，因此最稳妥还是采用绑定MAC
1.配置LSW1
<Huawei>sys
[Huawei]undo info-center enable
[Huawei]vlan batch 100 200
[Huawei]interface GigabitEthernet 0/0/1
[Huawei-GigabitEthernet0/0/1]port link-type trunk
[Huawei-GigabitEthernet0/0/1]port trunk allow-pass vlan 100 200
[Huawei-GigabitEthernet0/0/1]quit
[Huawei]interface GigabitEthernet 0/0/2
[Huawei-GigabitEthernet0/0/2]port link-type trunk
[Huawei-GigabitEthernet0/0/2]port trunk allow-pass vlan 100 200
[Huawei-GigabitEthernet0/0/2]quit
[Huawei]interface GigabitEthernet 0/0/3
[Huawei-GigabitEthernet0/0/3]port link-type access
[Huawei-GigabitEthernet0/0/3]port default vlan 200
[Huawei-GigabitEthernet0/0/3]quit
[Huawei]interface GigabitEthernet 0/0/4
[Huawei-GigabitEthernet0/0/4]port link-type access
[Huawei-GigabitEthernet0/0/4]port default vlan 100

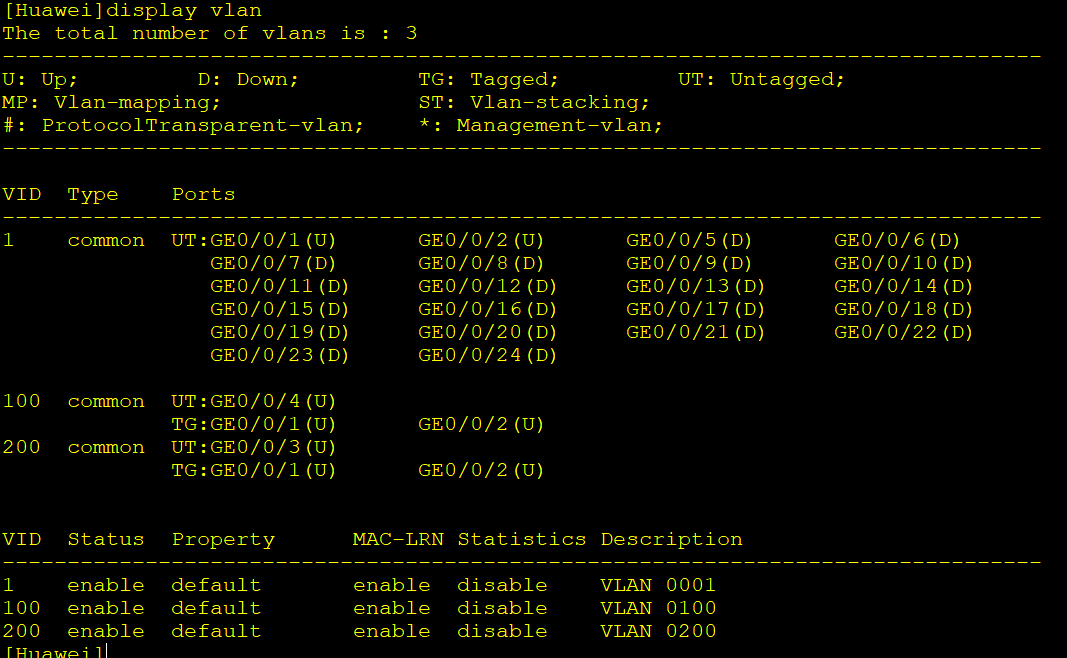

[Huawei-GigabitEthernet0/0/2]display vlan
2.配置LSW2
<Huawei>sys
[Huawei]undo info-center enable
[Huawei]interface GigabitEthernet 0/0/2
[Huawei-GigabitEthernet0/0/2]port link-type trunk
[Huawei-GigabitEthernet0/0/1]port trunk allow-pass vlan 100 200
[Huawei]port-group 1to22
[Huawei-port-group-1to22]group-member Ethernet 0/0/1 to Ethernet 0/0/22
[Huawei-port-group-1to22]mac-vlan enable
[Huawei-port-group-1to22]port link-type hybrid
[Huawei-port-group-1to22]port hybrid untagged vlan 100 200
[Huawei-port-group-1to22]quit
[Huawei]vlan 100
[Huawei-vlan100]mac-vlan mac-address 5489-982D-33E8
[Huawei-vlan100]mac-vlan mac-address 5489-9835-7098
[Huawei-vlan100]vlan 200
[Huawei-vlan200]mac-vlan mac-address 5489-985E-2A01
[Huawei-vlan200]mac-vlan mac-address 5489-98DF-44D3
3.配置LSW3
<Huawei>sys
[Huawei]undo info-center enable
[Huawei]interface GigabitEthernet 0/0/1
[Huawei-GigabitEthernet0/0/1]port link-type trunk
[Huawei-GigabitEthernet0/0/1]port trunk allow-pass vlan 100 200
[Huawei]port-group 1to22
[Huawei-port-group-1to22]group-member Ethernet 0/0/1 to Ethernet 0/0/22
[Huawei-port-group-1to22]mac-vlan enable
[Huawei-port-group-1to22]port link-type hybrid
[Huawei-port-group-1to22]port hybrid untagged vlan 100 200
[Huawei-port-group-1to22]quit
[Huawei]vlan 100
[Huawei-vlan100]mac-vlan mac-address 5489-982D-33E8
[Huawei-vlan100]mac-vlan mac-address 5489-9835-7098
[Huawei-vlan100]vlan 200
[Huawei-vlan200]mac-vlan mac-address 5489-985E-2A01
[Huawei-vlan200]mac-vlan mac-address 5489-98DF-44D3
4.测试

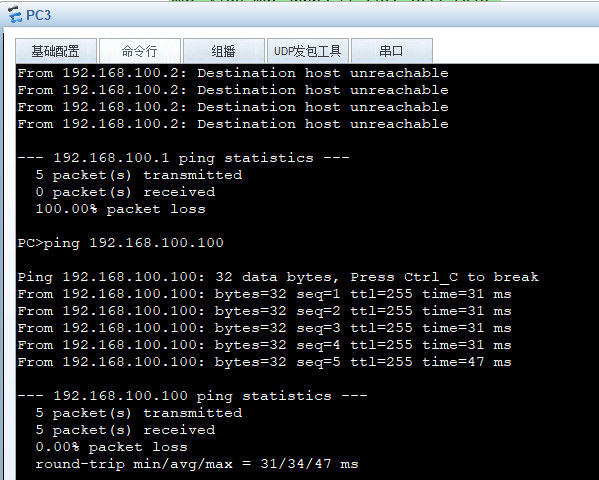

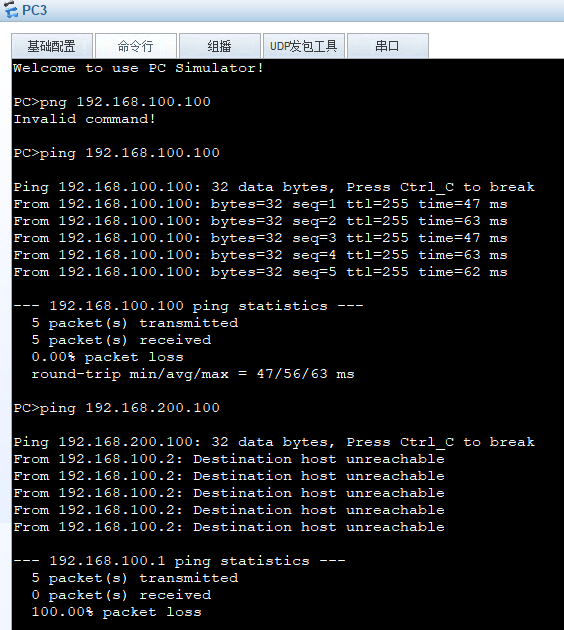

（1）不同VLAN不能通讯

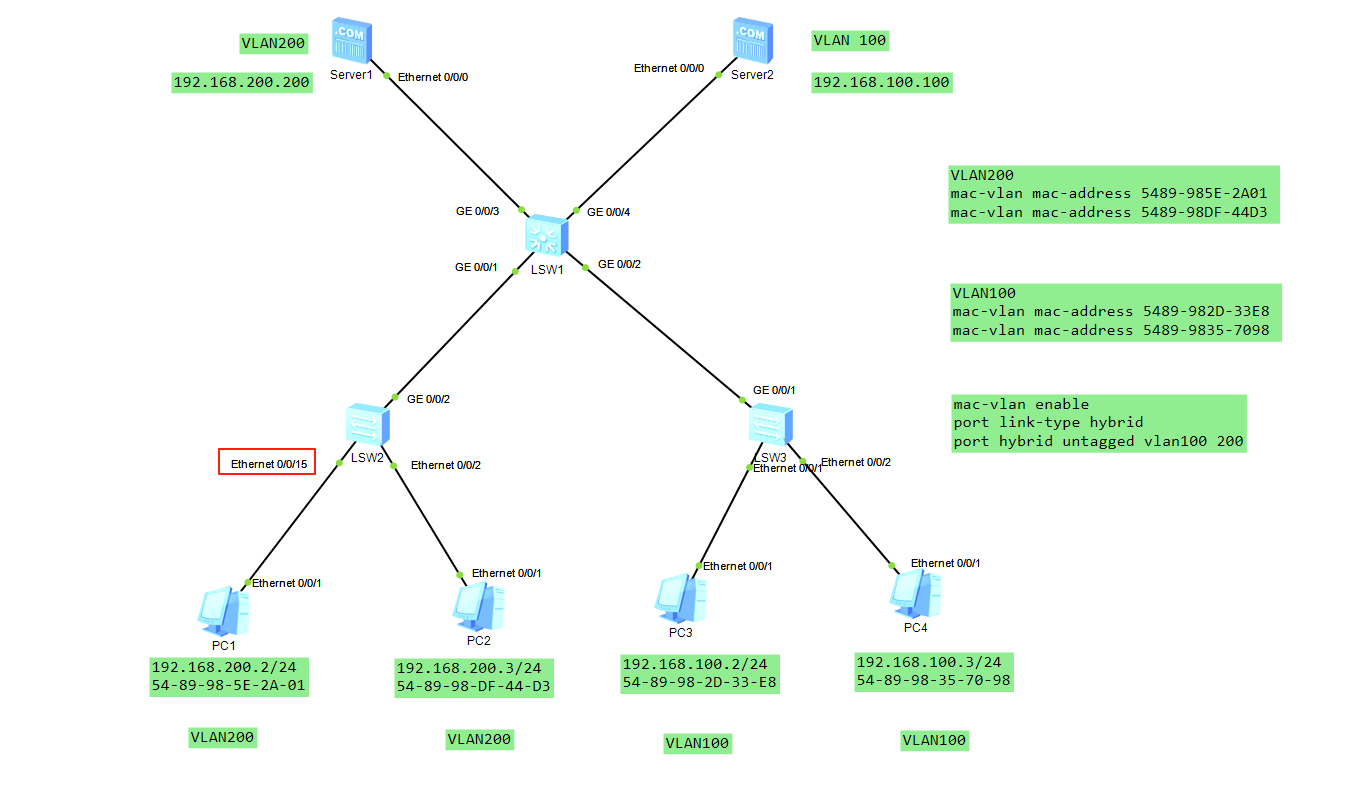

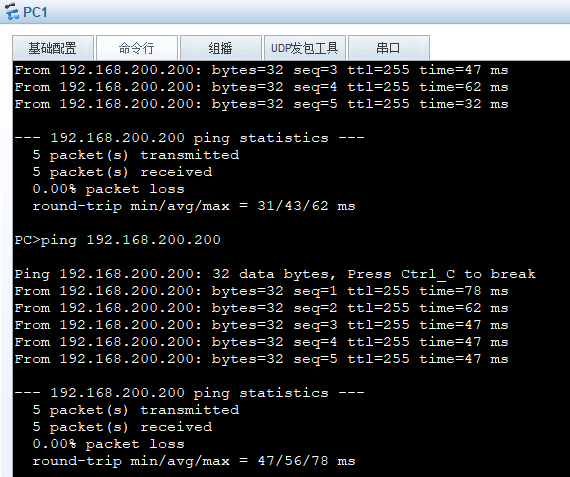

（2）换其他接口，一样可以用
（3）自动识别到不同的VLAN
