hybrid混合接口配置VLAN

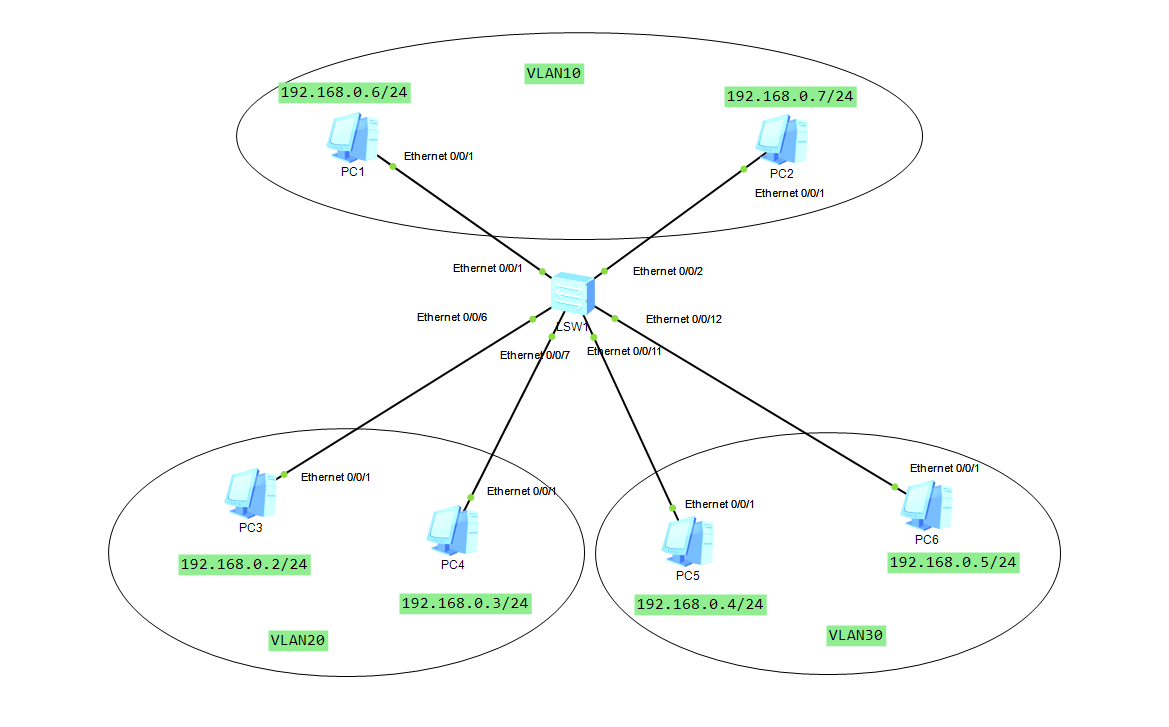

项目需求VL20和VLA10可以通讯，VLAN10可以和VLAN30通讯，但是VLAN20和VLAN30不能通讯
VLAN10
<Huawei>sys
[Huawei]undo info-center enable
[Huawei]vlan batch 10 20 30
[Huawei]port-group g1
[Huawei-port-group-g1]group-member Ethernet 0/0/1 to Ethernet 0/0/5
[Huawei-port-group-g1]port link-type hybrid
[Huawei-port-group-g1]port hybrid pvid vlan 10
[Huawei-port-group-g1]port hybrid untagged vlan 10 20 30
[Huawei-port-group-g1]quit
VLAN20
[Huawei]port-group g2
[Huawei-port-group-g2]group-member Ethernet 0/0/6 to Ethernet 0/0/11
[Huawei-port-group-g2]port link-type hybrid
[Huawei-port-group-g2]port hybrid pvid vlan 20
[Huawei-port-group-g2]port hybrid untagged vlan 10 20
[Huawei-port-group-g2]quit
VLAN30
[Huawei]port-group g3
[Huawei-port-group-g3]group-member Ethernet 0/0/11 to Ethernet 0/0/22
[Huawei-port-group-g3]port link-type hybrid
[Huawei-port-group-g3]port hybrid pvid vlan 30
[Huawei-port-group-g3]port hybrid untagged vlan 10 30

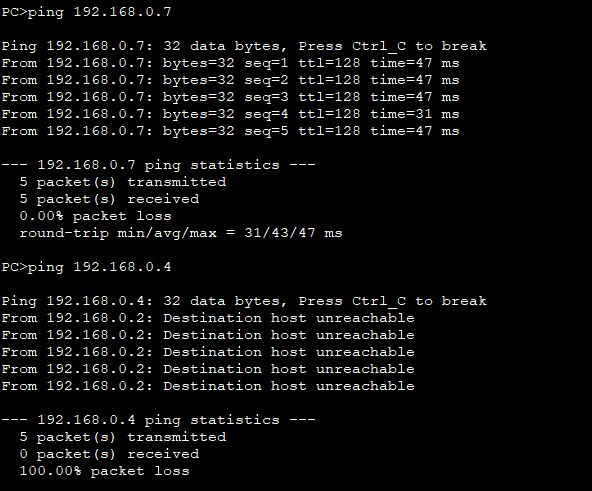

测试
