1.项目要求
VLAN 1 能够访问Internet
VLAN 2和3不能访问Internet和VLAN1
VLAN 2和3之间能够相互访问

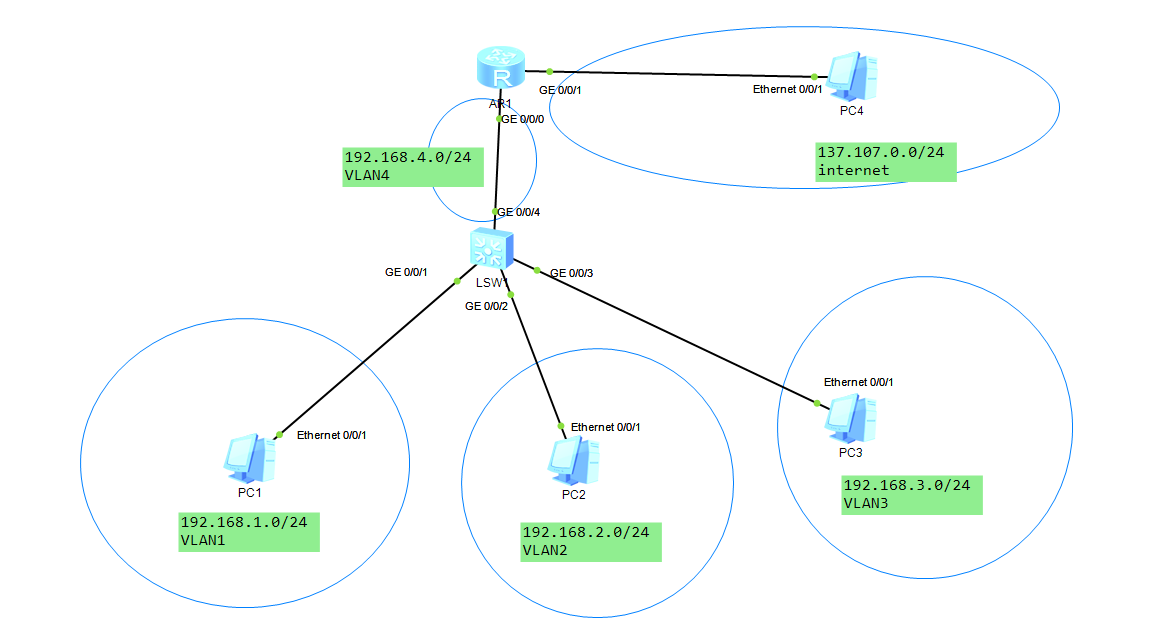

2.配置环境
AR1
<Huawei>interface g
<Huawei>sys
[Huawei]user-interface console 0
[Huawei-ui-console0]authentication-mode aaa
[Huawei-ui-console0]aaa
[Huawei-aaa]local-user zhao password cipher 123456
[Huawei-aaa]local-user zhao privilege level 3
[Huawei-aaa]local-user wong password cipher 123456
[Huawei-aaa]local-user wong privilege level 3
[Huawei-aaa]local-user wong service-type ssh
[Huawei-aaa]quit
[Huawei]ssh user wong authentication-type password
[Huawei]user-interface vty 0 4
[Huawei-ui-vty0-4]authentication-mode aaa
[Huawei-ui-vty0-4]protocol inbound ssh
[Huawei-ui-vty0-4]quit
[Huawei]stelnet server enable
[Huawei]interface GigabitEthernet 0/0/0
[Huawei-GigabitEthernet0/0/0]ip address 192.168.4.1 24
[Huawei-GigabitEthernet0/0/0]quit
[Huawei]interface GigabitEthernet 0/0/1
[Huawei-GigabitEthernet0/0/1]ip address 137.107.0.1 24
[Huawei-GigabitEthernet0/0/1]quit
[Huawei]ip route-static 0.0.0.0 0 192.168.4.2
LSW1
<Huawei>sys
[Huawei]vlan batch 1 2 3
[Huawei]undo info-center enable
[Huawei]interface GigabitEthernet 0/0/1
[Huawei-GigabitEthernet0/0/1]port link-type access
[Huawei-GigabitEthernet0/0/1]port default vlan 1
[Huawei-GigabitEthernet0/0/1]quit
[Huawei]interface vlanif 1
[Huawei-Vlanif1]ip address 192.168.1.1 24
[Huawei-Vlanif1]quit
[Huawei]interface GigabitEthernet 0/0/2
[Huawei-GigabitEthernet0/0/2]port link-type access
[Huawei-GigabitEthernet0/0/2]port default vlan 2
[Huawei-GigabitEthernet0/0/2]quit
[Huawei]interface Vlanif 2
[Huawei-Vlanif2]ip address 192.168.2.1 24
[Huawei-Vlanif2]quit
[Huawei]interface GigabitEthernet 0/0/3
[Huawei-GigabitEthernet0/0/3]port link-type access
[Huawei-GigabitEthernet0/0/3]port default vlan 3
[Huawei-GigabitEthernet0/0/3]quit
[Huawei]interface vlanif 3
[Huawei-Vlanif3]ip address 192.168.3.1 24
[Huawei-Vlanif3]quit
[Huawei]vlan 4
[Huawei-vlan4]quit
[Huawei]interface GigabitEthernet 0/0/4
[Huawei-GigabitEthernet0/0/4]port link-type access
[Huawei-GigabitEthernet0/0/4]port default vlan 4
[Huawei-GigabitEthernet0/0/4]quit
[Huawei]interface Vlanif 4
[Huawei-Vlanif4]ip address 192.168.4.2 24
[Huawei]ip route-static 137.107.0.0 16 192.168.4.1
3.配置ACL
#设置ACL规则
<Huawei>sys
[Huawei]acl 3001
[Huawei-acl-adv-3001]
[Huawei-acl-adv-3001]display acl all
[Huawei-acl-adv-3001]rule 5 deny ip source 192.168.1.0 0.0.0.255 destination 192
.168.2.0 0.0.0.255
[Huawei-acl-adv-3001]rule 10 deny ip source 192.168.1.0 0.0.0.255 destination 19
2.168.3.0 0.0.0.255
[Huawei-acl-adv-3001]rule 15 permit ip source 192.168.1.0 0.0.0.255
[Huawei-acl-adv-3001]rule 20 permit ip source 192.168.2.0 0.0.0.255 destination
192.168.3.0 0.0.0.255
[Huawei-acl-adv-3001]rule 30 permit ip source 192.168.3.0 0.0.0.255 destination
192.168.2.0 0.0.0.255
[Huawei-acl-adv-3001]rule 40 deny ip
#显示ACL规则
[Huawei-acl-adv-3001]display acl all
Total quantity of nonempty ACL number is 1
Advanced ACL 3001, 6 rules
Acl's step is 5
rule 5 deny ip source 192.168.1.0 0.0.0.255 destination 192.168.2.0 0.0.0.255
rule 10 deny ip source 192.168.1.0 0.0.0.255 destination 192.168.3.0 0.0.0.255
rule 15 permit ip source 192.168.1.0 0.0.0.255
rule 20 permit ip source 192.168.2.0 0.0.0.255 destination 192.168.3.0 0.0.0.255
rule 30 permit ip source 192.168.3.0 0.0.0.255 destination 192.168.2.0 0.0.0.255
rule 40 deny ip
#绑定
[Huawei]traffic-filter vlan 1 inbound acl 3001
[Huawei]traffic-filter vlan 2 inbound acl 3001
[Huawei]traffic-filter vlan 3 inbound acl 3001

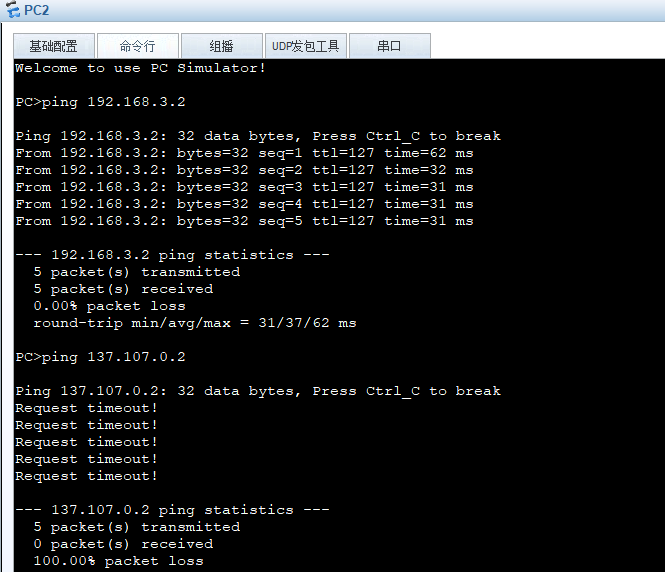

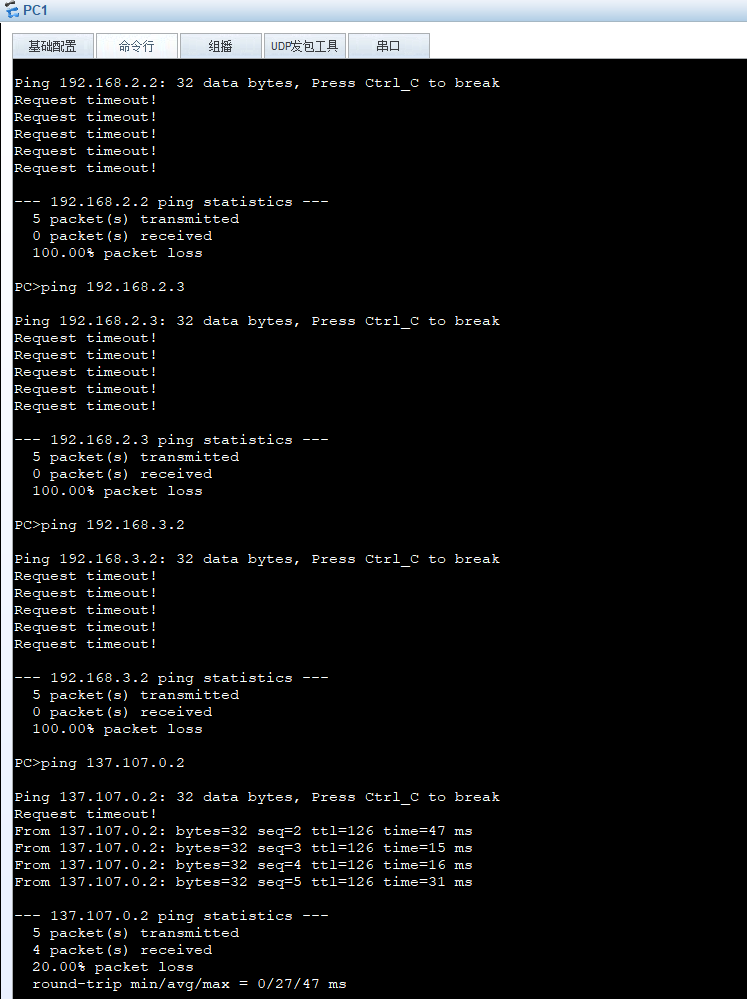

4.测试
