实战：配置动态NAT

实战1：动态NAT

[Huawei]nat address-group 1 ?
[Huawei]nat address-group 1 12.2.2.2 12.2.2.3

[Huawei]acl 2000
[Huawei-acl-basic-2000]rule 5 permit source 192.168.0.0 0.0.0.255
[Huawei-acl-basic-2000]rule 10 deny
[Huawei-acl-basic-2000]quit

[Huawei]interface GigabitEthernet 0/0/1
[Huawei-GigabitEthernet0/0/1]nat outbound 2000 address-group 1

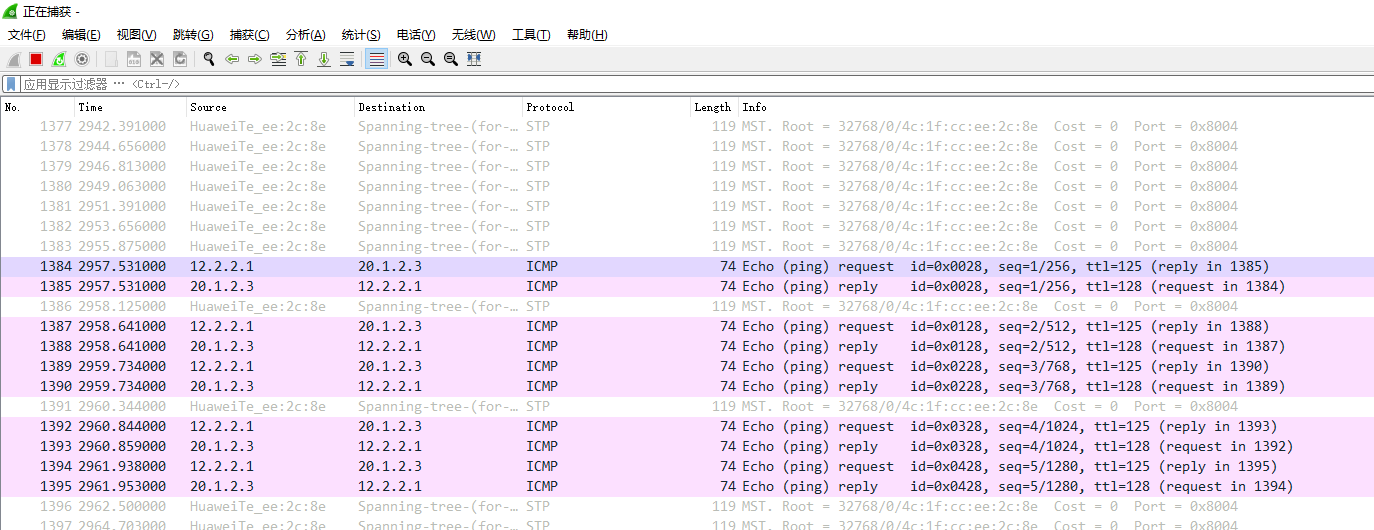

PC抓包

PC4抓包

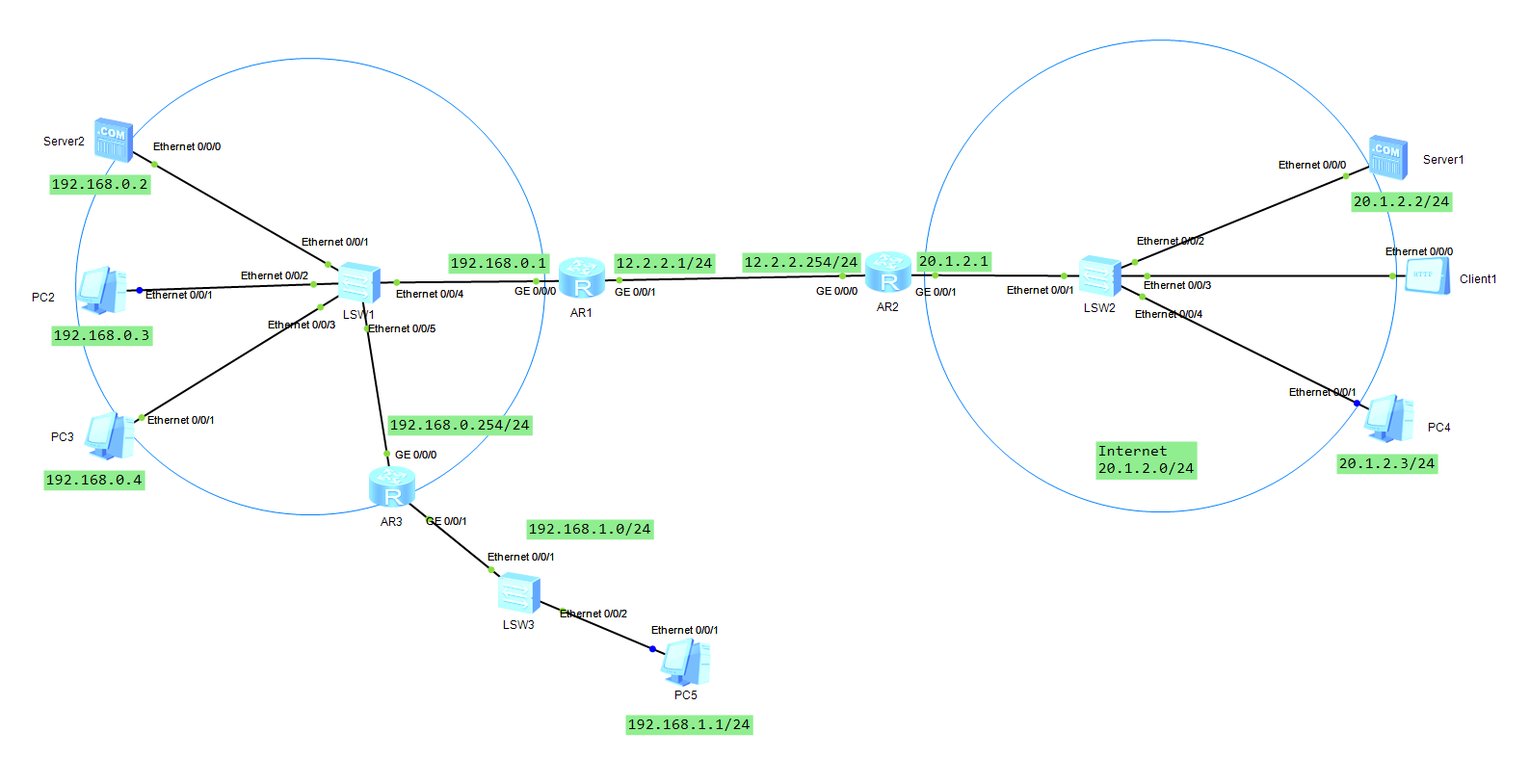

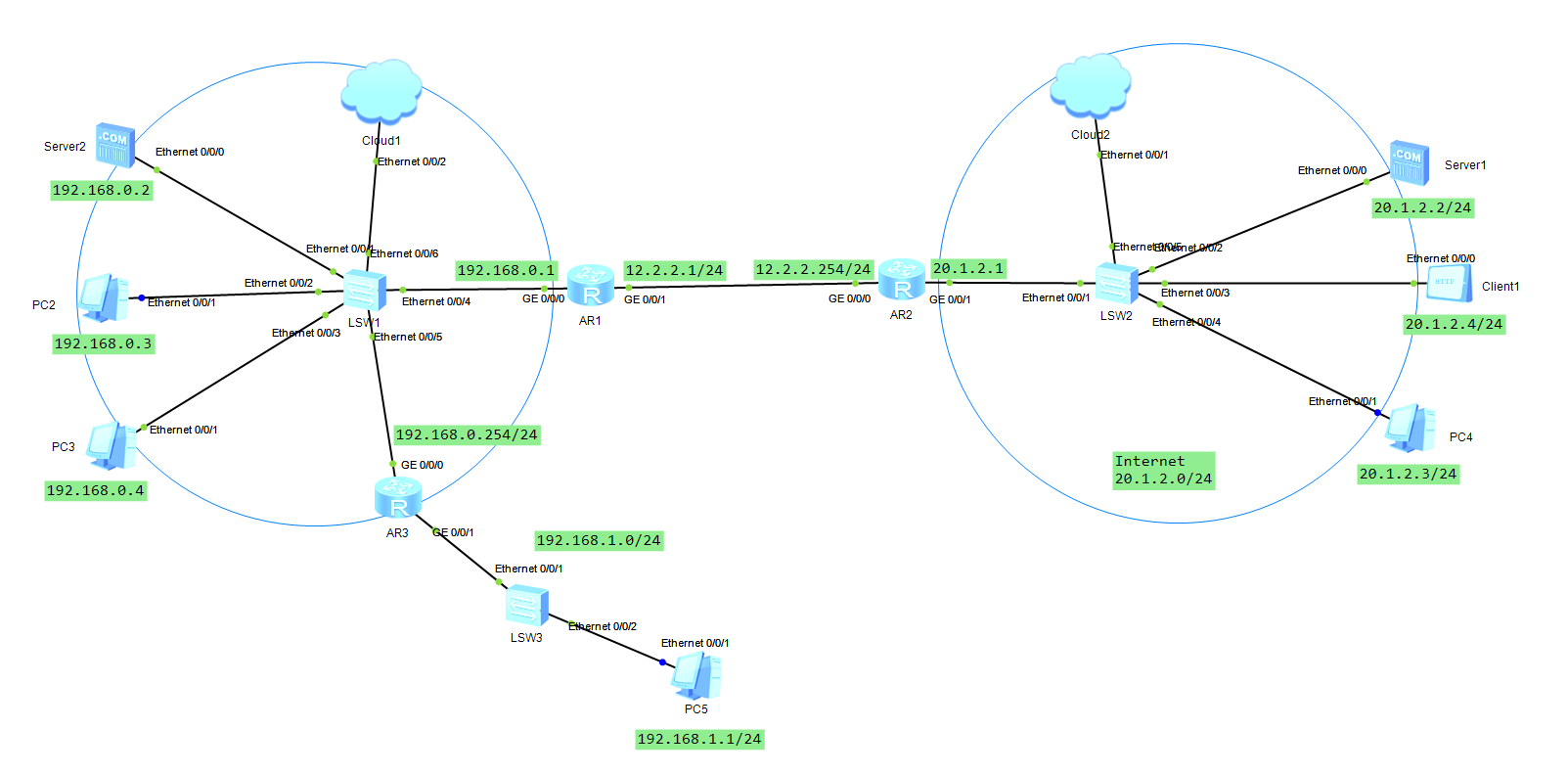

实战2：动态NAT+路由

AR3

<Huawei>sys
[Huawei]interface GigabitEthernet 0/0/0
[Huawei-GigabitEthernet0/0/0]ip address 192.168.0.254 24
[Huawei-GigabitEthernet0/0/0]quit

[Huawei]interface GigabitEthernet 0/0/1
[Huawei-GigabitEthernet0/0/1]ip address 192.168.1.1 24
[Huawei-GigabitEthernet0/0/1]quit

[Huawei]ip route-static 0.0.0.0 0 192.168.0.1

AR1

<Huawei>sys
[Huawei]ip route-static 192.168.1.0 24 192.168.0.254
[Huawei-acl-basic-2000]rule 6 permit source 192.168.1.0 0.0.0.255

测试

PC1

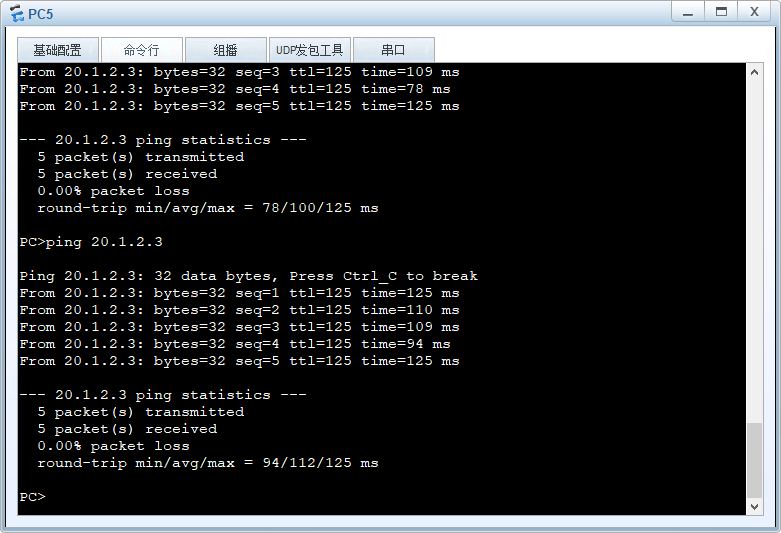

PC5

实战3：EASY NAT

EASY NAT属于简化版动态NAT

<Huawei>sys
[Huawei]interface GigabitEthernet 0/0/1
[Huawei-GigabitEthernet0/0/1]display this

[V200R003C00]
#
interface GigabitEthernet0/0/1
 ip address 12.2.2.1 255.255.255.0
 nat outbound 2000 address-group 1
#
return

[Huawei-GigabitEthernet0/0/1]undo nat outbound 2000 address-group 1
[Huawei-GigabitEthernet0/0/1]quit
[Huawei]undo nat address-group 1

[Huawei-GigabitEthernet0/0/1]nat outbound 2000

测试

PC5抓包

实战4：端口映射

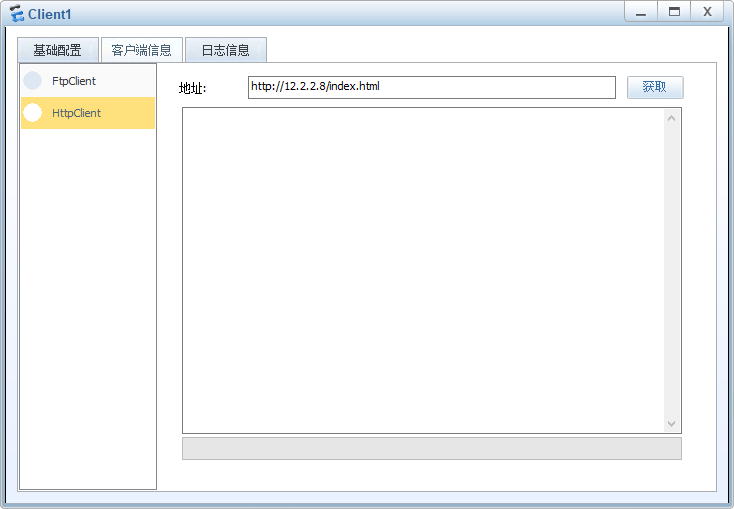

client1

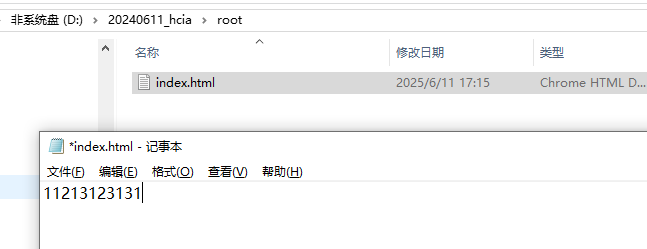

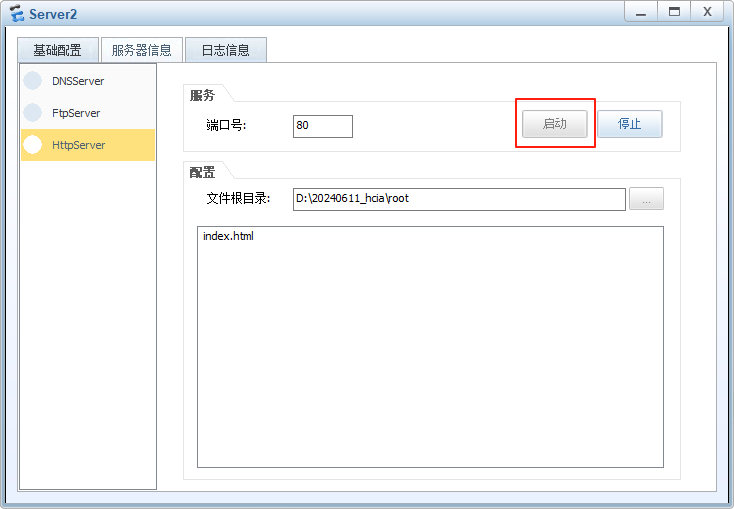

server2

配置端口映射

AR1

<Huawei>sys

[Huawei]interface GigabitEthernet 0/0/1
[Huawei-GigabitEthernet0/0/1]nat server protocol tcp global 12.2.2.8 80 inside 1
92.168.0.2 80 #-- 12.2.2.8是公网地址里面一个地址段

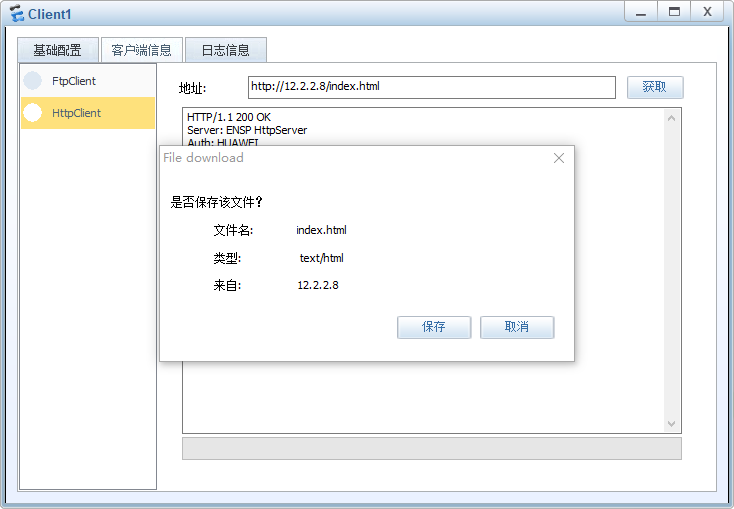

测试

实战5：端口映射+远程桌面

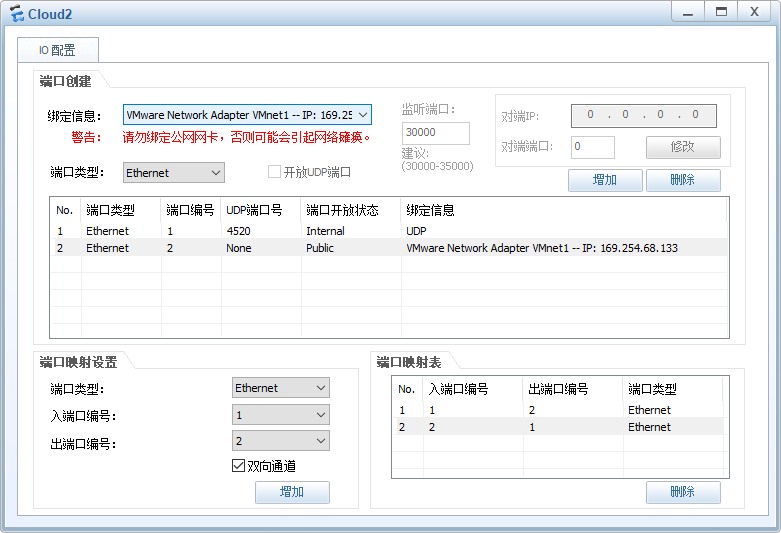

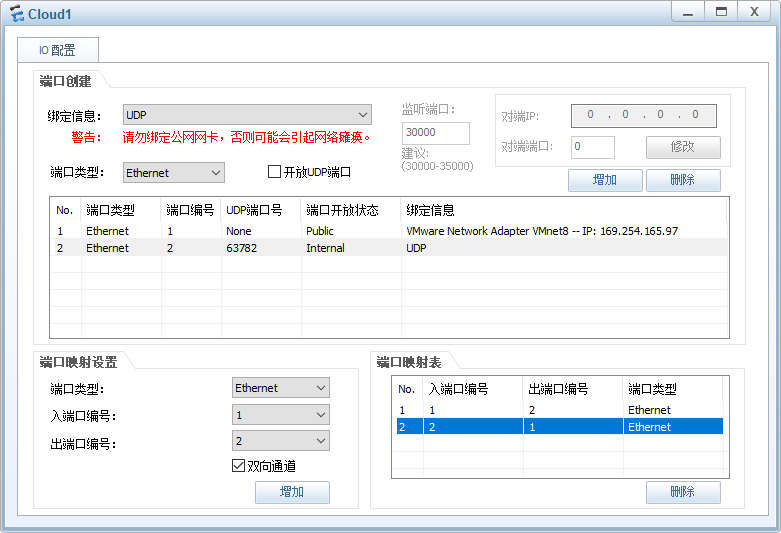

cloud1

clould2

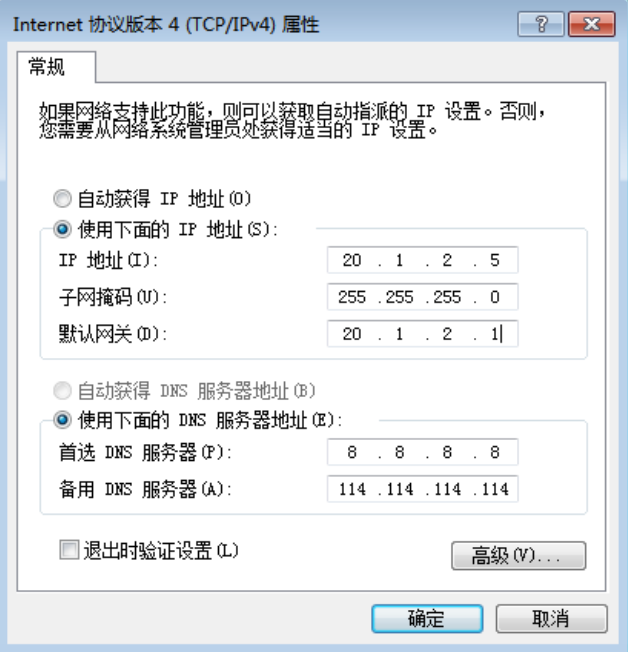

WIN7

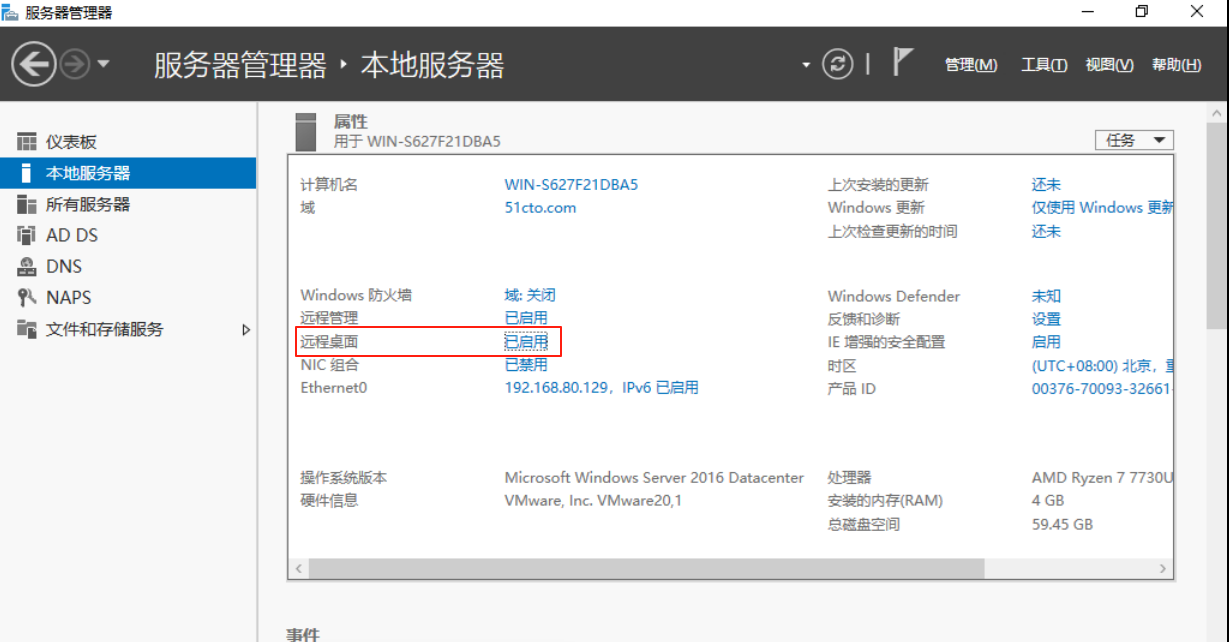

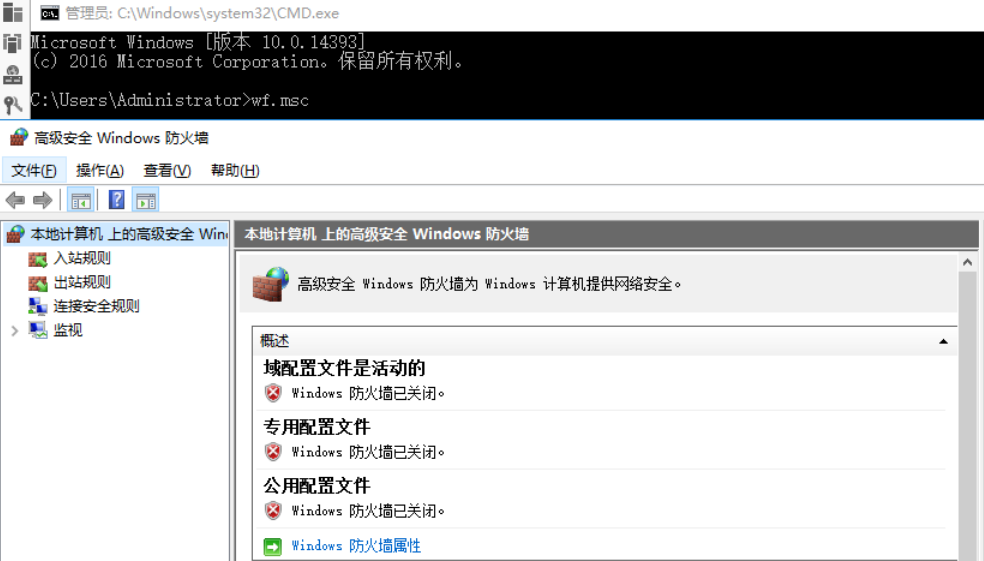

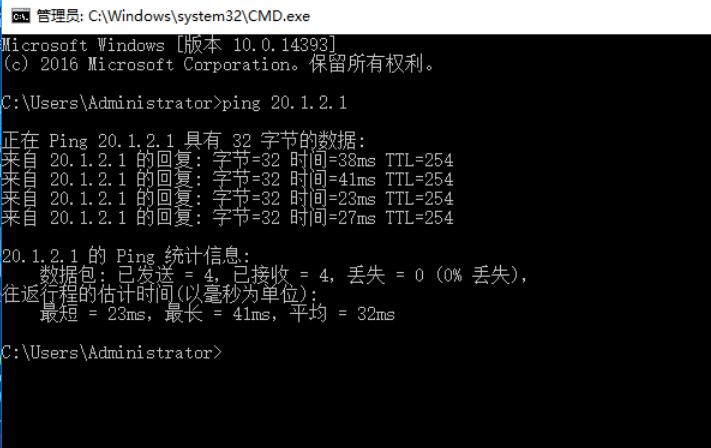

WINDOWS 2016

AR1

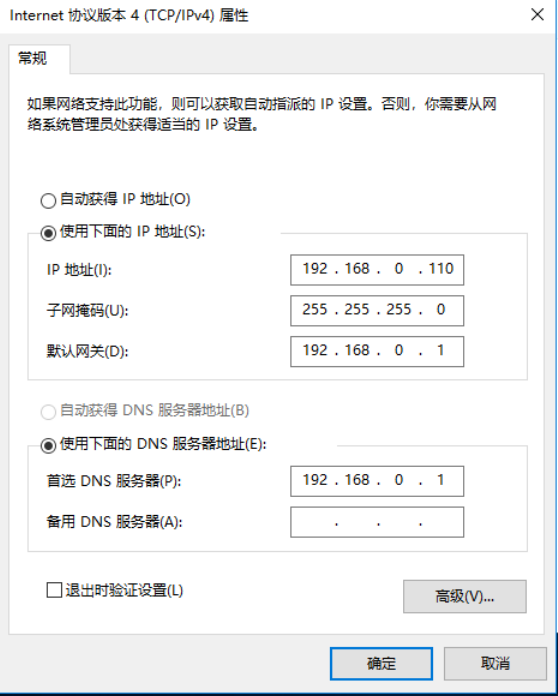

[Huawei-GigabitEthernet0/0/1]nat server protocol tcp global 12.2.2.8 4500 inside
 192.168.0.110 3389

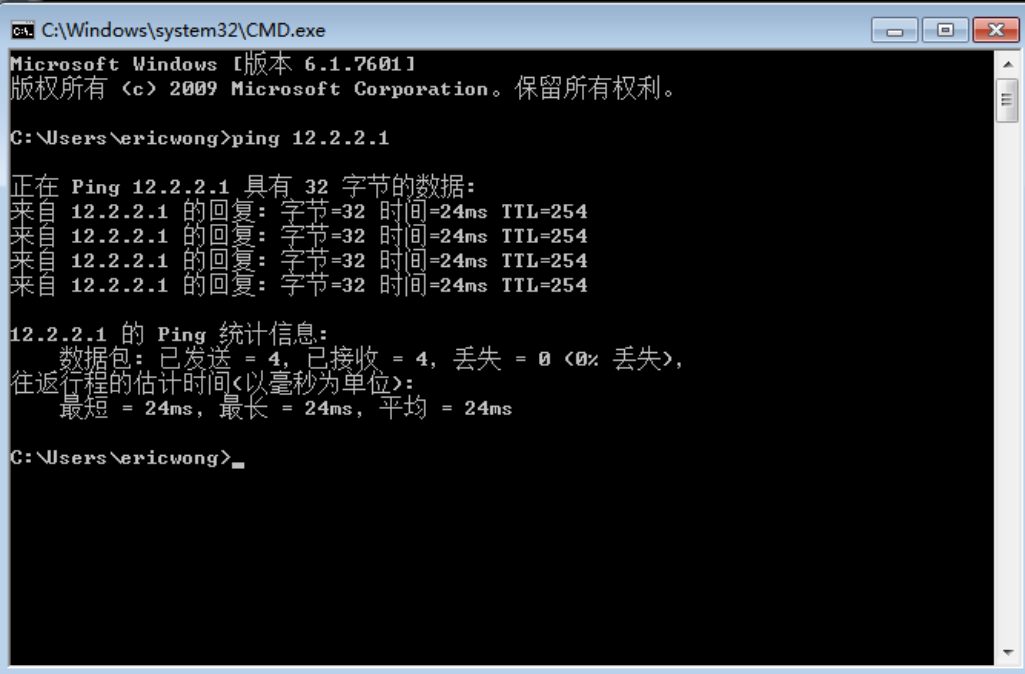

测试

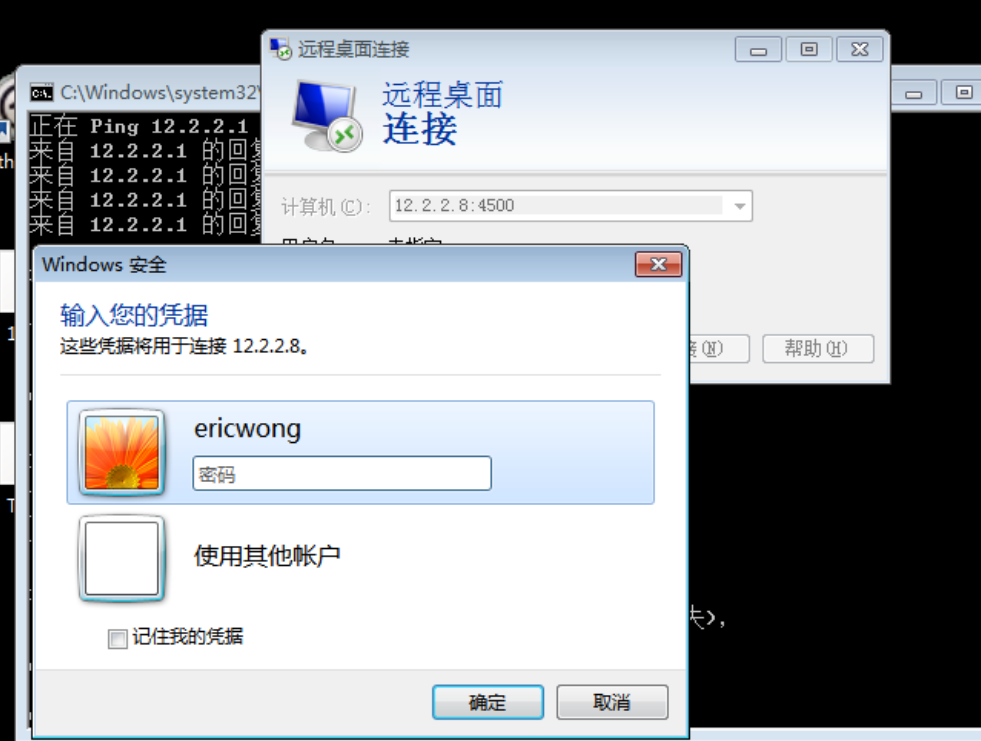

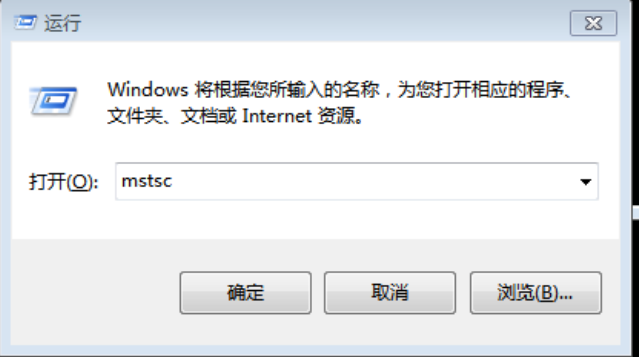

WIN7 登录WIN2016

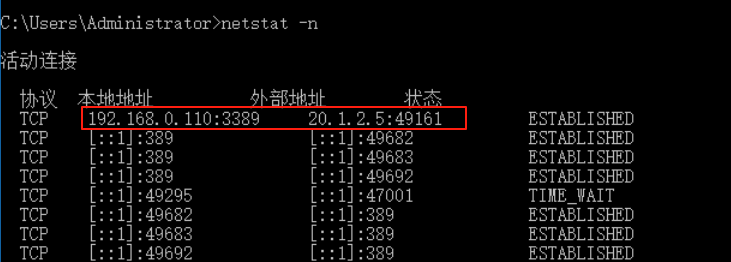

ch

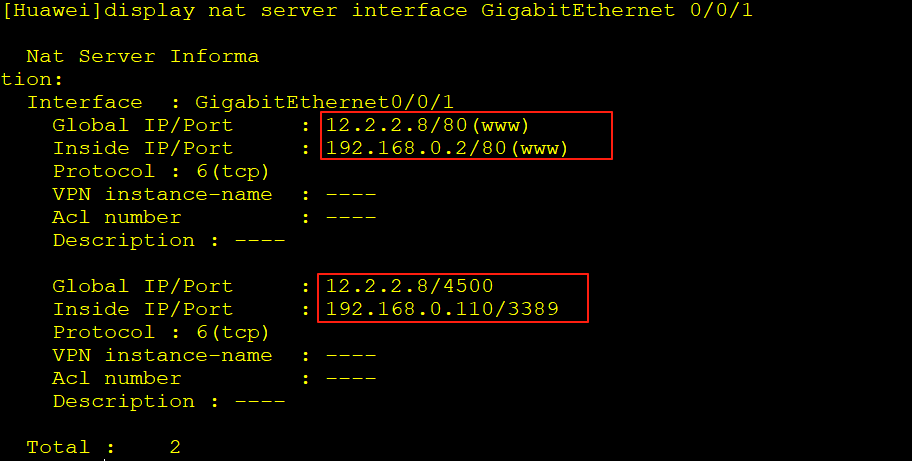

查看端口映射的情况

[Huawei]display nat server interface GigabitEthernet 0/0/1
