实战：配置静态NAT

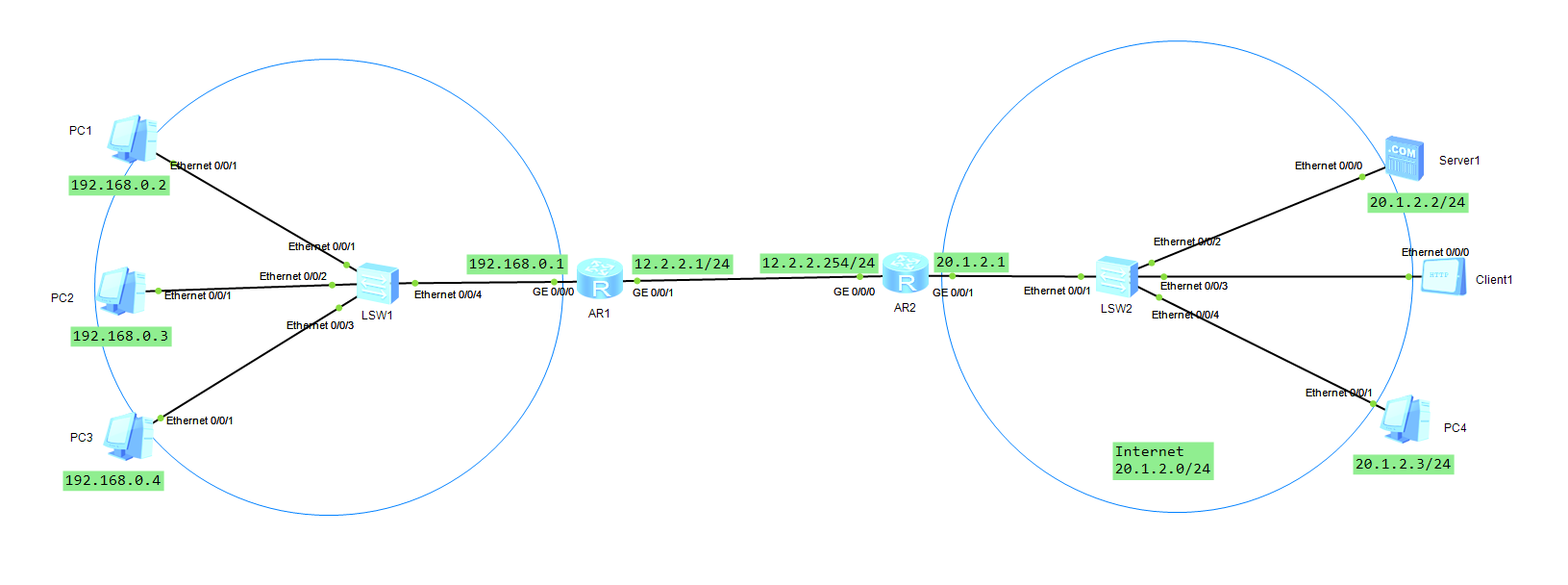

1.基础环境配置

AR1

<Huawei>sys
[Huawei]interface GigabitEthernet 0/0/0
[Huawei-GigabitEthernet0/0/0]ip address 192.168.0.1 24
[Huawei-GigabitEthernet0/0/0]quit

[Huawei]interface GigabitEthernet 0/0/1
[Huawei-GigabitEthernet0/0/1]ip address 12.2.2.1 24
[Huawei-GigabitEthernet0/0/1]quit

[Huawei]ip route-static 20.1.0.0 16 12.2.2.254

AR2

<Huawei>sys

[Huawei]interface GigabitEthernet 0/0/0
[Huawei-GigabitEthernet0/0/0]ip address 12.2.2.254 24
[Huawei-GigabitEthernet0/0/0]quit

[Huawei]interface GigabitEthernet 0/0/1
[Huawei-GigabitEthernet0/0/1]ip address 20.1.2.1 24

2.环境测试

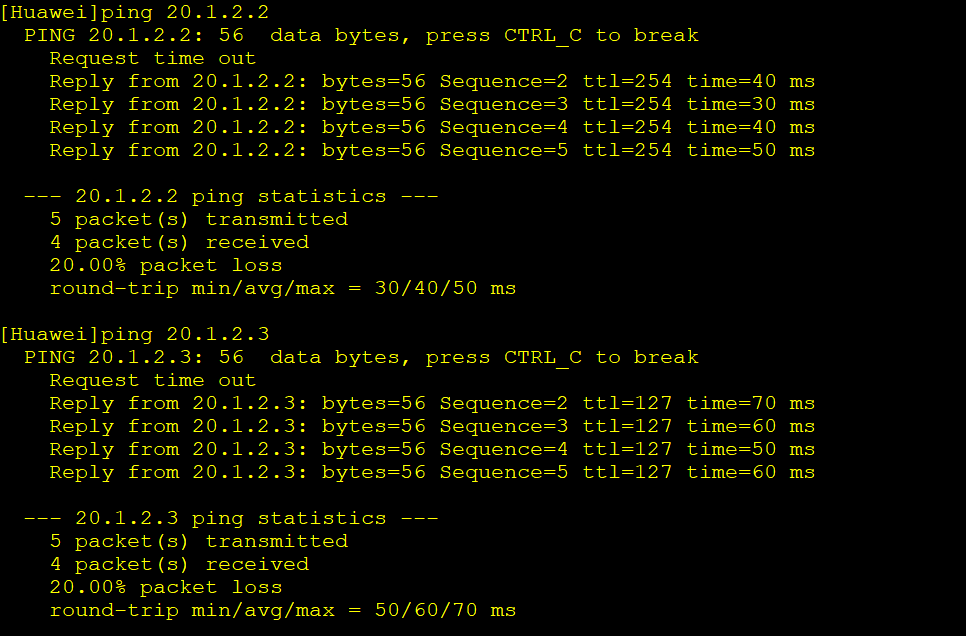

AR1

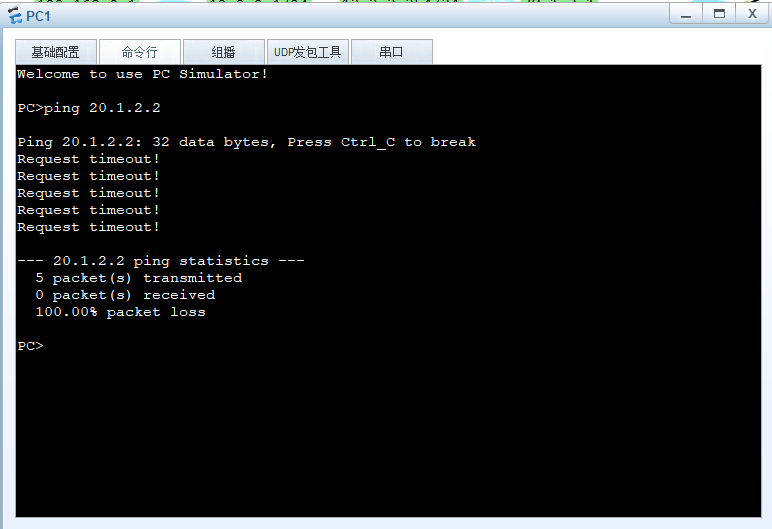

PC1

3.配置静态NAT

[Huawei]interface g
[Huawei]interface GigabitEthernet 0/0/1
[Huawei-GigabitEthernet0/0/1]nat static global 12.2.2.2 inside 192.168.0.2
[Huawei-GigabitEthernet0/0/1]nat static global 12.2.2.3 inside 192.168.0.3
[Huawei-GigabitEthernet0/0/1]nat static global 12.2.2.4 inside 192.168.0.4

4.静态NAT测试

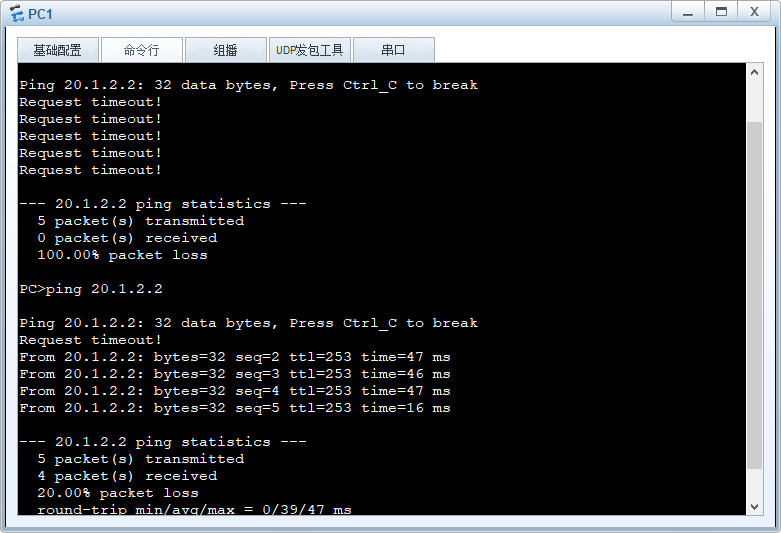

PC1

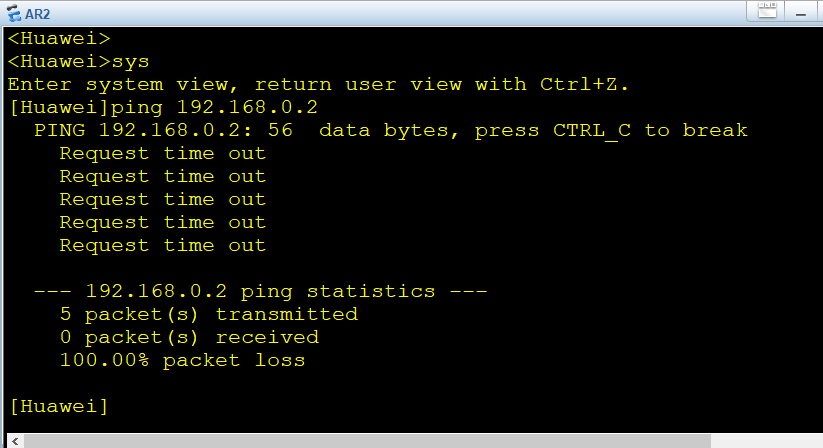

AR2
